This item is Discontinued.

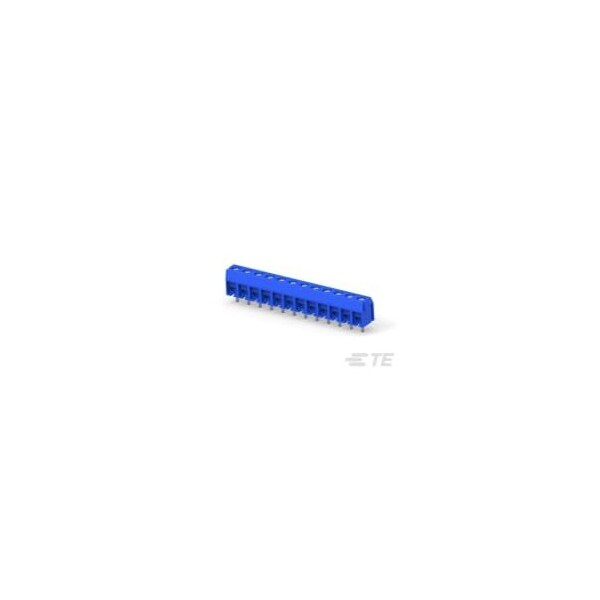

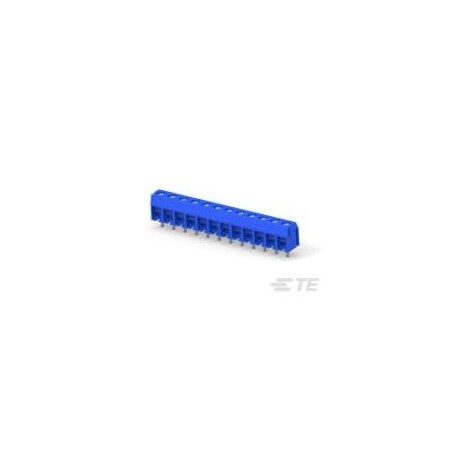

Te Connectivity Vert Side Wire Entry 5.0mm B 1-1776244-2

Vert Side Wire Entry 5.0mm B (Discontinued)

  • Mfr # 1-1776244-2
  • Zoro # G301034428
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1-1776244-2
Zoro #
G301034428
UPC #
-
Country of Origin
China

Dimensions

PCB Tail Length
.138 in

Details

Housing Color
Blue
Voltage
300 VAC
Stacked Levels
Without
Connector Mounting Type
Board Mount
Centerline (Pitch)
.197 in
Contact Base Material
Brass
Operating Temperature Range
-67 to 221°F
Number of Positions
12
Current Rating (Max)
10A
Profile
Low
Connector & Contact Terminates To
Printed Circuit Board
Wire Protection
With
Block Type
None
Contact Mount
Through Hole
Connector System
Wire-to-Board
Wire Range
22 to 14 AWG
Connector Style
Header
Contact Current Rating (Max)
10A
Screw Plating Material
Zinc Chromate
Circuit Application
Power & Signal
Mounting Angle
Vertical
Housing Material
NY - FR15
Contact Mating Area Plating Material
Tin
Header Type
Header Only
Screw Material
Steel
Wire Entry Angle
Side
Screwless Terminal Block
No
Side Stackable
Yes
Interlock
With
Closed End
Without
Screw Flange
Without
