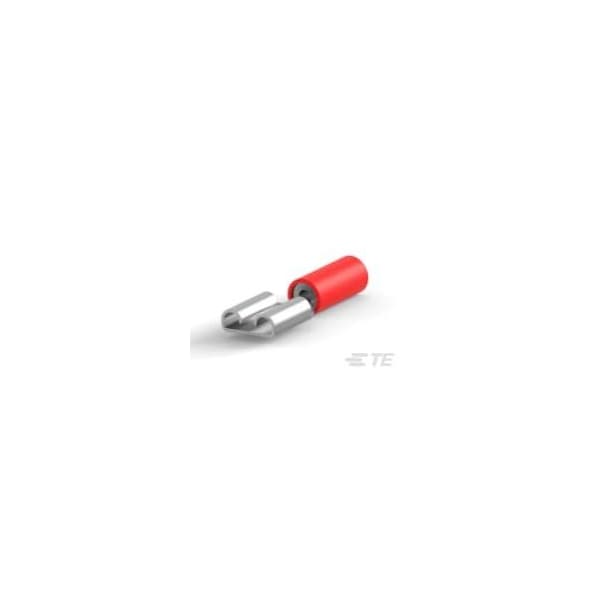

Wire Terminal, 0.3 mm², 300 V, Nylon Insulated, Red
Mfr # 9-1377174-2
Zoro # G901026618
product price: $0.90
/ea
Sold in multiples of 100 for $90.00
Key Features
Insulation Color
Red
Maximum Wire Size
15 AWG
Minimum Wire Size
22 AWG
Insulation Type
Nylon
Maximum Voltage
300 V
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 9-1377174-2
- Zoro #
- G901026618
- UPC #
- -
- Country of Origin
- Netherlands
Dimensions
- Maximum Wire Size
- 15 AWG
- Minimum Wire Size
- 22 AWG
- Wire Insulation Diameter (Max)
- .14 in
- Mating Tab Width
- .25 in
- Mating Tab Thickness
- .032 in
Details
- Item
- Wire Terminal
- Insulation Color
- Red
- Insulation Type
- Nylon
- Maximum Voltage
- 300 V
- Barrel Color
- Red
- Terminal Orientation
- Straight
- Fully Insulated
- No
- Plating Material
- Tin
- FASTON
- Yes
- Contact Base Material
- Phosphor Bronze
- Mating Retention Type
- Dimple
- Maximum Operating Temperature
- 105 Degrees C
- Minimum Operating Temperature
- -40 Degrees C
- Terminal Shape
- Quick Disconnect
- Contact Material
- Copper
- Termination Style
- Crimp
- Insulation Coverage
- Partial Coverage
- Standards
- UL & CSA Listed
