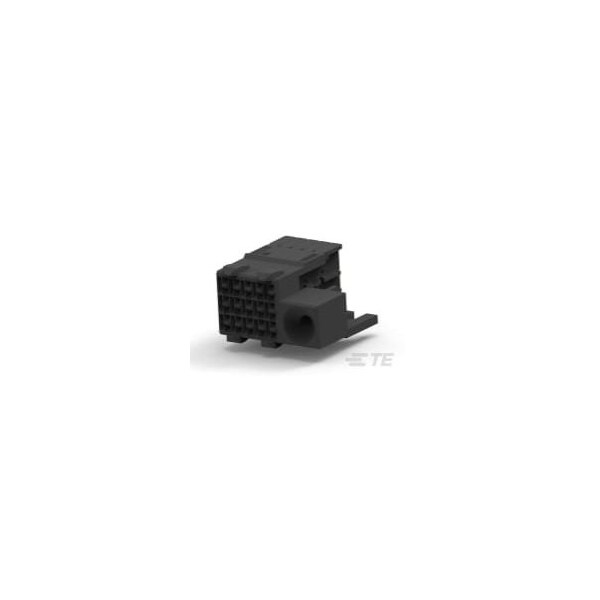

Te Connectivity ZP HS3 DB 06R REC 030P RT PD 5120788-1

ZP HS3 DB 06R REC 030P RT PD (Discontinued)

  • Mfr # 5120788-1
  • Zoro # G200979806
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5120788-1
Zoro #
G200979806
UPC #
-
Country of Origin
China

Dimensions

Width
.555 in
Height
.47 in
Length
.851 in
PCB Hole Diameter
.002 in
Contact Mating Area Plating Thickness
19.68µin
PCB Thickness (Recommended)
1.4 mm
Termination Post Length
.089 in
Tail Length
.055 in, .083 in

Details

Number of Positions
30
For Use With
Receptacle Assembly
Contact Mating Area Plating Material
Tin
Shield Material
Phosphor Bronze
Contact Design
Dual Beam
PCB Mount Retention
With
Make First / Break Last
No
Connector Mounting Type
Board Mount
Guide Pin Style
ESD/HDI
Termination Method to Printed Circuit Board
Through Hole - Press-Fit
PCB Contact Termination Area Plating Material Finish
Matte
Operating Voltage
250 VAC
Centerline (Pitch)
.079 in
Mating Alignment Type
Polarization
Contact Style
Short Tail, Press-Fit
Contact Type
Socket
Number of Differential Pairs per Column
3
PCB Contact Termination Area Plating Material
Tin
Connector Style
Receptacle
Sealable
No
Shrouded
Unshrouded
PCB Mount Orientation
Right Angle
Mating Retention
Without
Connector & Contact Terminates To
Printed Circuit Board
PCB Mount Retention Type
Action/Compliant Tail
Contact Current Rating (Max)
1.15 A
UL Flammability Rating
UL 94V-0
Row-to-Row Spacing
.078 in
Connector System
Board-to-Board
Mating Alignment
With
Number of Rows
6
Differential Signaling
No
Board-to-Board Configuration
Right Angle
Contact Transmits (Typical)
Signal (Data)
Contact Underplating Material
Nickel
Product Type
Connector
Number of Columns
5
Preloaded
Yes
Operating Temperature Range
-85 to 221°F
Housing Material
Polyester - GF
Housing Color
Black
Circuit Application
Signal
Module Type
Right
Contact Base Material
Copper Alloy
