Shop TECHNIKS

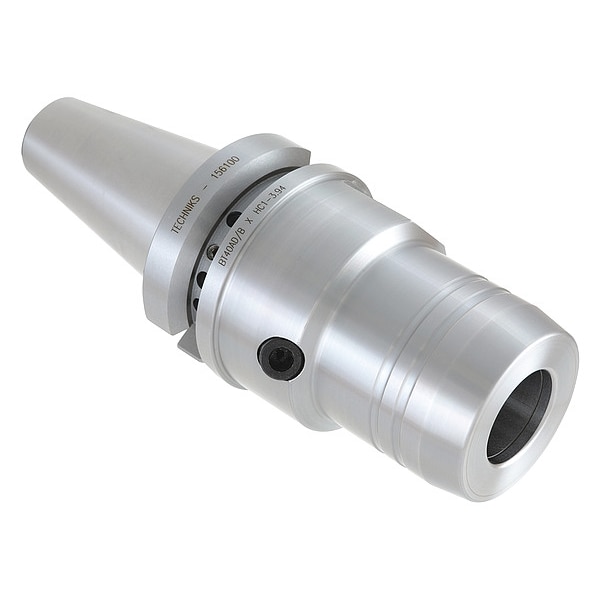

Collet Chuck

  • Mfr # 153500

  • Zoro # G8342740

product price:  $332.99
/ea
Free Shipping & Returns

Key Features

Features
Accurate Cutting at Extended Lengths, Extended Length Hydraulic Holders
Overall Length
5.25 in
Coolant Fed
Coolant Through
Standards
ANSI, DIN 6499, ISO
Compatible with Product Type
ER Standard Collet Chucks
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
153500
Zoro #
G8342740
UPC #
-
Country of Origin
Korea, Republic of

Dimensions

Overall Length
5.25 in
Taper Size
BT30
Shank Dia.
1/2"
Nose Dia.
1.2600"
Max. Body Dia.
41.00mm
Size Increments
0.13mm
Clamping Hole Length
25.00mm
Max. Bore Dia.
18.00mm
Projection Length
3.35 in
Nose Diameter
1.26 in
Shank Diameter
0.5 in
Wire Rope Length
5.25 in

Details

Features
Accurate Cutting at Extended Lengths, Extended Length Hydraulic Holders
Item
Collet Chuck
Coolant Fed
Coolant Through
Standards
ANSI, DIN 6499, ISO
Compatible with Product Type
ER Standard Collet Chucks
Material - Machining
High Speed Steel
For Shank Type
Straight
Number of Coolant Holes
0
Collet Series
ER40
Projection
3.3460"
For Use With
Hydraulic Tools
Face Shape
Round
Collet Type
Single Angle Solid Tap
Measurement System
Metric
Taper Angle
16 Degrees
Number of Slots
8
Color
Silver
Compatible Product Type
Hydraulic Tools
Balancing
G2.5
Shank Type
Taper

Description

Collet Chuck, BT30, Shank Dia. 1/2 In.
