  11. Collet Chuck, ER20, 4 in. Projection

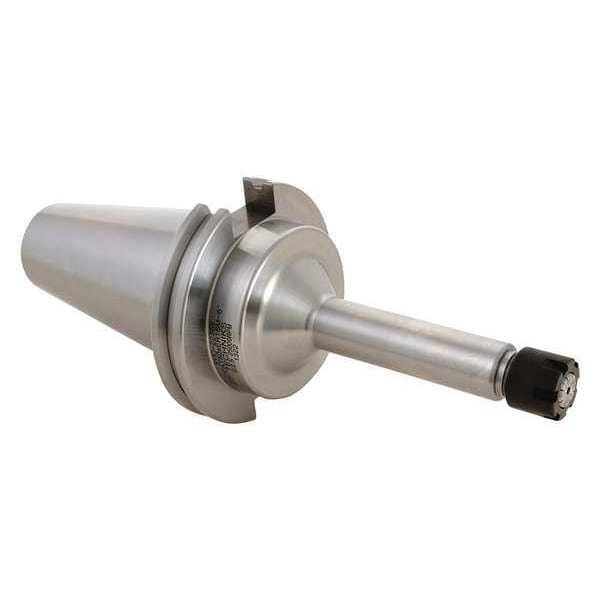

Techniks Collet Chuck, ER20, 4 in. Projection 22368 - main

Collet Chuck, ER20, 4 in. Projection

  • Mfr # 22368

  • Zoro # G0393928

product price: $349.99
/ea
Free Shipping & Returns

Key Features

Collet Series
ER20
For Use With
Wrench Mfr. No. 4623
Min. Collet Capacity
0.0190 in
Coolant Through
Yes
Runout
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
22368
Zoro #
G0393928
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Nut Dia.
1.100 in
Taper Size
CAT50
Dimension Type
V-Flange
Nose Dia.
1.1020 in
Nose Diameter
3.88 in
Outside Diameter - Maximum
2.75 in
Nut Diameter
1.1 in
Compatible Collet Size - Minimum
0.02 in
Compatible Collet Size - Maximum
0.55 in
Shank Diameter
0.51 in

Details

Item
Collet Chuck
Collet Series
ER20
For Use With
Wrench Mfr. No. 4623
Min. Collet Capacity
0.0190 in
Coolant Through
Yes
Runout
Yes
Max. Collet Capacity
0.551 in
Pre-Balanced
Yes
Balanceable
Yes
Projection
4 in
Spindle
Yes
Material
High Speed Steel
Coolant Fed
Coolant Through
Features
Yes
Shank Type
Taper
Compatible Nut Model Number
23120
Included Nut Type
Mini
T.I.R. Tolerance
0 in
Includes Nut
Nut Included
Contact Type
Single Contact
Balance Rating
G2.5
Compatible Collet Wrench
04623
Speed - Maximum
25,000 RPM
Product Type
CAT Collet Chuck
Compatible Backup Screw Model Number
16087
Includes Coolant Screws
Coolant Screws Included
Compatible Collet Series
ER20
Coolant Supply
Coolant Through-Spindle

Description

Collet Chuck, Taper Size CAT50, Min. Collet Capacity 0.0190 in, Max. Collet Capacity 0.551 in, Projection 4 in, ER20
