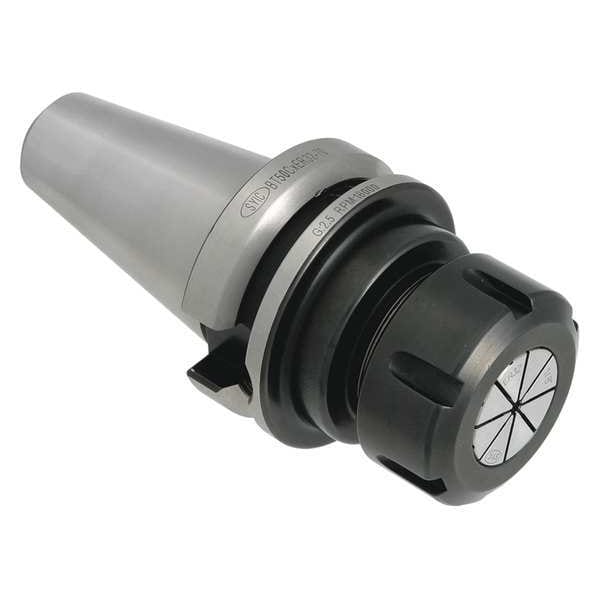

Techniks Collet Chuck, ER20, 90mm Projection 16263 - main

Collet Chuck, ER20, 90mm Projection

  • Mfr # 16263

  • Zoro # G0394530

product price: $222.99
/ea
Free Shipping & Returns

Key Features

Collet Series
ER20
For Use With
Wrench Mfr. No. 4614
Pre-Balanced
Yes
Coolant Through
Yes
Max. Collet Capacity
0.551 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
16263
Zoro #
G0394530
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Nut Dia.
1.380 in
Dimension Type
V-Flange
Taper Size
BT50
Nose Dia.
1.3400 in
Nose Diameter
100 mm
Outside Diameter - Maximum
69.85 mm
Nut Diameter
1.34 in
Compatible Collet Size - Maximum
0.55 in
Compatible Collet Size - Minimum
0.02 in
Shank Diameter
0.51 in

Details

Item
Collet Chuck
Collet Series
ER20
For Use With
Wrench Mfr. No. 4614
Pre-Balanced
Yes
Coolant Through
Yes
Max. Collet Capacity
0.551 in
Material
High Speed Steel
Spindle
Yes
Balanceable
Yes
Min. Collet Capacity
0.0190 in
Runout
Yes
Projection
90 mm
Coolant Fed
Coolant Through
Features
Yes
Contact Type
Single Contact
Balance Rating
G2.5
Includes Coolant Screws
Coolant Screws Included
T.I.R. Tolerance
0 in
Compatible Nut Model Number
41120
Compatible Backup Screw Model Number
16087
Shank Type
Taper
Coolant Supply
Coolant Through-Spindle
Included Nut Type
Hex
Speed - Maximum
25,000 RPM
Includes Nut
Nut Included
Product Type
BT Collet Chuck
Compatible Collet Series
ER20
Compatible Collet Wrench
04610

Description

Collet Chuck, Taper Size BT50, Min. Collet Capacity 0.0190 in, Max. Collet Capacity 0.551 in, Projection 90 mm, ER20
