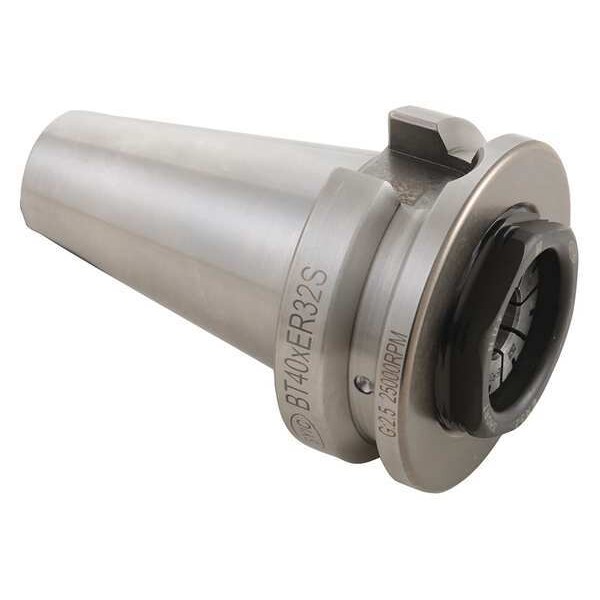

Techniks Collet Chuck, ER32, 36mm Projection 16177S - main

Collet Chuck, ER32, 36mm Projection

  • Mfr # 16177S

  • Zoro # G0509577

product price: $152.99
/ea
Free Shipping & Returns

Key Features

Collet Series
ER32
For Use With
Wrench Mfr. No. 4616
Taper Size
BT40
Max. Collet Capacity
0.827 in
Dimension Type
V-Flange
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
16177S
Zoro #
G0509577
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Taper Size
BT40
Dimension Type
V-Flange
Nut Dia.
1.970 in
Nose Dia.
1.5700 in
Outside Diameter - Maximum
44.45 mm
Shank Diameter
0.75 in
Nut Diameter
1.57 in
Nose Diameter
50 mm
Compatible Collet Size - Minimum
0.04 in
Compatible Collet Size - Maximum
0.83 in

Details

Item
Collet Chuck
Collet Series
ER32
For Use With
Wrench Mfr. No. 4616
Max. Collet Capacity
0.827 in
Min. Collet Capacity
0.0430 in
Spindle
Yes
Runout
Yes
Material
High Speed Steel
Balanceable
Yes
Coolant Through
Yes
Projection
36 mm
Pre-Balanced
Yes
Coolant Fed
Coolant Through
Features
Yes
Compatible Backup Screw Model Number
16089
T.I.R. Tolerance
0 in
Includes Nut
Nut Included
Compatible Collet Wrench
894-36
Compatible Nut Model Number
TE-22HN
Included Nut Type
Hex
Shank Type
Taper
Contact Type
Single Contact
Compatible Collet Series
ER32
Coolant Supply
Coolant Through-Spindle
Product Type
BT Collet Chuck
Speed - Maximum
25,000 RPM
Balance Rating
G2.5

Description

Collet Chuck, Taper Size BT40, Min. Collet Capacity 0.0430 in, Max. Collet Capacity 0.827 in, Projection 36 mm, ER32
