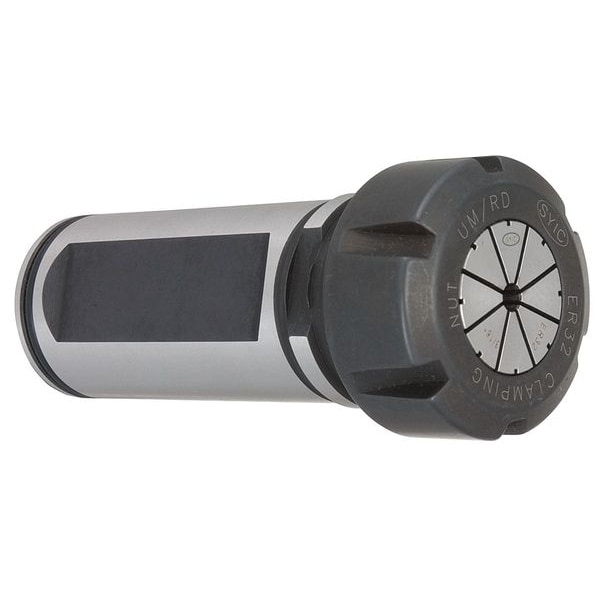

Techniks Collet Chuck, Straight, ER32, 1.496in, Steel 04788 - main

Collet Chuck, Straight, ER32, 1.496in, Steel

  • Mfr # 04788

  • Zoro # G9406311

product price:  $224.99
/ea
Free Shipping & Returns

Key Features

Collet Series
ER32
For Use With
CNC Lathes, Floating Taps
Material
High Speed Steel
Max. Collet Capacity
0.787 in
Min. Collet Capacity
0.0390 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
04788
Zoro #
G9406311
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Nut Dia.
1.970 in
Dimension Type
Straight
Overall Length
120 mm
Shank Dia.
1 1/2 in
Nose Dia.
50.00 mm
Head Length
38 mm
Shank Length
80 mm
Head Diameter
50 mm
Shank Diameter
1 1/2 in
Backup Screw Thread Size
M22 x 1.5

Details

Item
Collet Chuck Extension
Collet Series
ER32
For Use With
CNC Lathes, Floating Taps
Material
High Speed Steel
Max. Collet Capacity
0.787 in
Min. Collet Capacity
0.0390 in
Projection
1.4960 in
Coolant Fed
Coolant Through
Features
Coolant up to 1500 psi
Compatible Collet Wrench
04615
Coolant Supply
Coolant Through
Compatible Nut Model Number
41932
Included Nut Type
Slotted
Speed - Maximum
25,000 RPM
Operating Pressure - Maximum
1,500 psi
Compatible Collet Series
ER32
T.I.R. Tolerance
0 in
Compatible Product Type
ER Collets

Description

Collet Chuck, Dimension Type Straight, Collet Series ER32, Min. Collet Capacity 0.0390 In., Max. Collet Capacity 0.7874 In., Projection 1.496 In., Nut Dia. 1.970 In., Material Steel, For Use With CNC Lathes, Floating Tap
