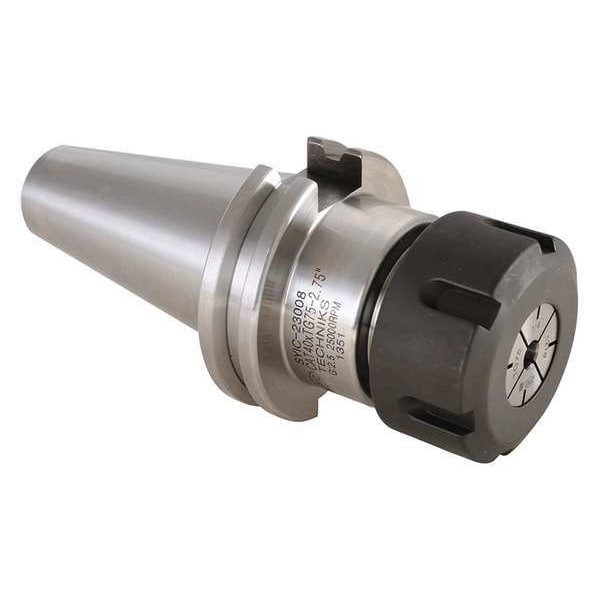

Techniks Collet Chuck, TG75, 2.75 in. Projection 23008 - main

Collet Chuck, TG75, 2.75 in. Projection

  • Mfr # 23008

  • Zoro # G0393900

product price: $272.99
/ea
Free Shipping & Returns

Key Features

Collet Series
TG75
For Use With
Wrench Mfr. No. 4018
Pre-Balanced
Yes
Max. Collet Capacity
0.750 in
Dimension Type
V-Flange
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
23008
Zoro #
G0393900
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Dimension Type
V-Flange
Taper Size
CAT40
Nut Dia.
1.880 in
Nose Dia.
1.8800 in
Nut Diameter
1.88 in
Outside Diameter - Maximum
1.75 in
Compatible Collet Size - Minimum
0.09 in
Compatible Collet Size - Maximum
0.75 in
Shank Diameter
2.5 in
Nose Diameter
2.5 in

Details

Item
Collet Chuck
Collet Series
TG75
For Use With
Wrench Mfr. No. 4018
Pre-Balanced
Yes
Max. Collet Capacity
0.750 in
Runout
Yes
Balanceable
Yes
Spindle
Yes
Material
High Speed Steel
Projection
2.75 in
Min. Collet Capacity
0.0940 in
Coolant Through
Yes
Coolant Fed
Coolant Through
Features
Yes
Included Nut Type
Slotted
Speed - Maximum
25,000 RPM
Coolant Supply
Coolant Through-Spindle
Balance Rating
G2.5
Includes Coolant Screws
Coolant Screws Included
Compatible Backup Screw Model Number
16089
Includes Nut
Nut Included
Compatible Collet Series
TG75
Product Type
CAT Collet Chuck
Contact Type
Single Contact
Compatible Nut Model Number
84012
Compatible Collet Wrench
04018
Shank Type
Taper
T.I.R. Tolerance
0 in

Description

Collet Chuck, Taper Size CAT40, Min. Collet Capacity 0.0940 in, Max. Collet Capacity 0.750 in, Projection 2.75 in, TG75
