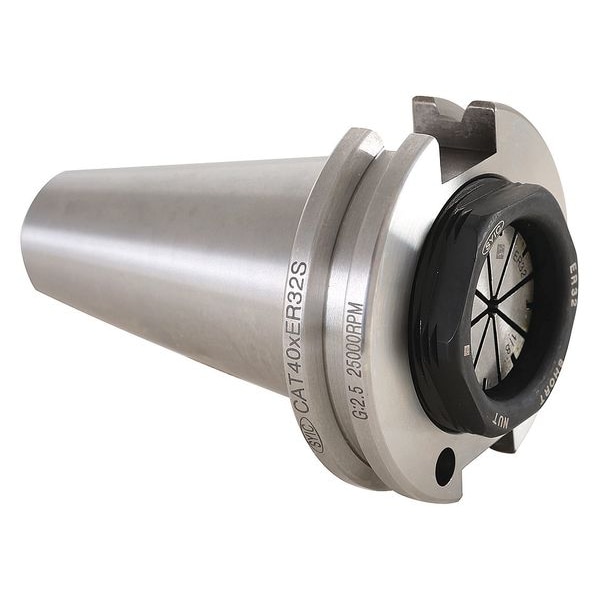

Collet Chuck, V-Flange, CAT40, ER32, 1.100in

  • Mfr # 22253S

  • Zoro # G9406792

product price:  $155.99
/ea
Free Shipping & Returns

Key Features

Collet Series
ER32
For Use With
Collets, Coolant Rings, Nuts, Retention Knobs, Tightening Stands, Wrenches
Projection
1.1 in
Material
High Speed Steel
Taper Size
CAT40
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
22253S
Zoro #
G9406792
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Taper Size
CAT40
Nut Dia.
1.580 in
Dimension Type
V-Flange
Nose Dia.
1.5700 in
Nut Diameter
1.57 in
Shank Diameter
0.75 in
Nose Diameter
2.5 in
Outside Diameter - Maximum
1.75 in
Compatible Collet Size - Minimum
0.04 in
Compatible Collet Size - Maximum
0.79 in

Details

Item
Collet Chuck
Collet Series
ER32
For Use With
Collets, Coolant Rings, Nuts, Retention Knobs, Tightening Stands, Wrenches
Projection
1.1 in
Material
High Speed Steel
Min. Collet Capacity
0.0390 in
Max. Collet Capacity
0.787 in
Coolant Fed
Coolant Through
Features
Balanced Up to 25,000 RPM
Shank Type
Taper
Speed - Maximum
25,000 RPM
Coolant Supply
Coolant Through-Spindle
Compatible Collet Wrench
894-36
Included Nut Type
Hex
T.I.R. Tolerance
0 in
Product Type
CAT Collet Chuck
Compatible Collet Series
ER32
Compatible Nut Model Number
TE-22HN
Balance Rating
G2.5
Includes Nut
Nut Included
Contact Type
Single Contact

Description

Collet Chuck, Taper Size CAT40, Min. Collet Capacity 0.0390 in, Max. Collet Capacity 0.787 in, Projection 1.1 in, ER32
