  11. End Mill Holder, CAT50, 0.7500in Bore Dia.

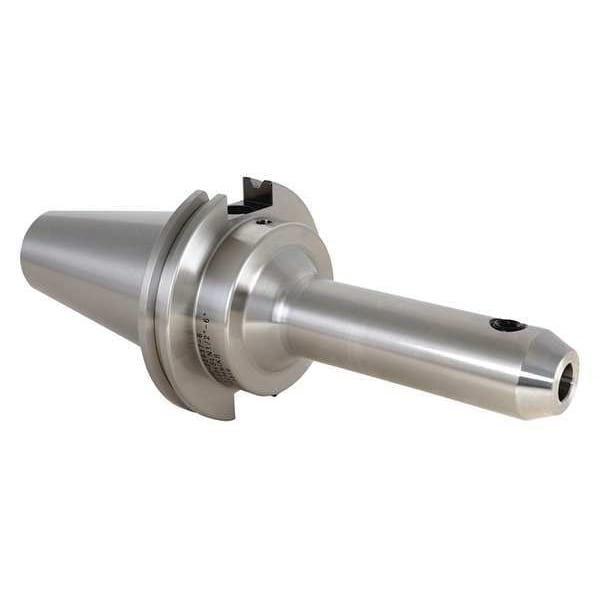

Techniks End Mill Holder, CAT50, 0.7500in Bore Dia. 22941-6 - main

End Mill Holder, CAT50, 0.7500in Bore Dia.

  • Mfr # 22941-6

  • Zoro # G1654795

product price: $175.99
/ea
Free Shipping & Returns

Key Features

Coolant Through
Yes
Nose Dia.
1-3/4 in
End
Single
Dimension Type
SAE
Projection
6 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
22941-6
Zoro #
G1654795
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Nose Dia.
1-3/4 in
Dimension Type
SAE
Taper Size
CAT50
Bore Dia.
3/4 in
Lock Screw Thread Size
5/8-18
Thread Size
5/8"-18
Body Width
2.75 in
Nose Diameter
1.75 in
Overall Diameter
3 7/8 in
Body Diameter
2.75 in
Bore Diameter
0.75 in
Set Screw Thread Size
5/8 in

Details

Coolant Through
Yes
End
Single
Projection
6 in
Item
End Mill Holder
Nose Type
Extended
Coolant Fed
Coolant Through
Measurement System
Inch
End Type
Single End
Shank Type - Machining
Taper
Features
Balanced to 15,000 RPM @ G6.3, Improved T.I.R. for extended Cutting Tool Life, Tapered body design Reduces Vibration and Enhances Rigidity, Increased Rigidity and Accuracy during Heavy Side Loads
Contact Type
Single Contact
Coolant Supply
Coolant Through-Spindle
Speed - Maximum
15,000 RPM
Balance Rating
G6.3
T.I.R. Tolerance
0.0002 in
Bore Tolerance
H5
Product Type
End Mill Holder

Description

End Mill Holder, Taper Size CAT50, Bore Dia. 3/4 in, Projection 6 in, Nose Dia. 1-3/4 in, Measurement System Inch, End Type Single End
