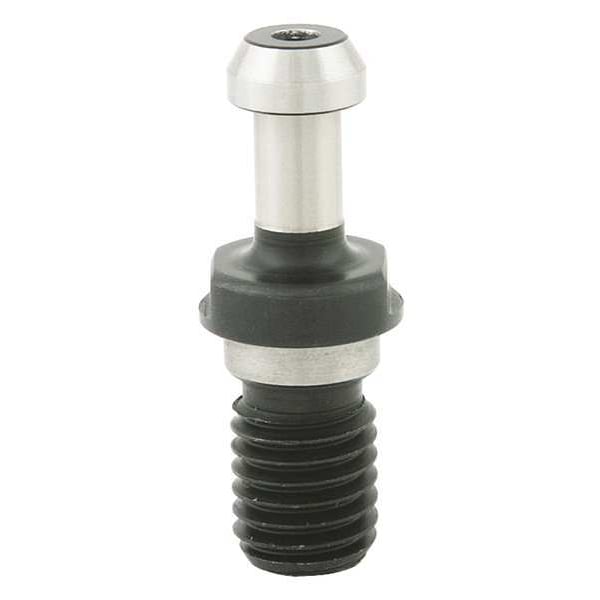

Retention Knob, 11mm, BT30, 60 deg.
- Mfr # 17812
- Zoro # G1653605
product price:Â
$
28.69
/ea
Key Features
Overall Length
43 mm
Material
Steel
Features
All Mating Surfaces Precision Ground, Hardened for Maximum Longevity
Knob Dia.
0.590"
Neck Dia.
7.00mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 17812
- Zoro #
- G1653605
- UPC #
- -
- Country of Origin
- Taiwan, Province of China
Dimensions
- Overall Length
- 43 mm
- Knob Dia.
- 0.590"
- Neck Dia.
- 7.00mm
- Thread Size
- M12
- Flange to Angle Length
- 0.3140 in
- Shoulder Dia.
- 16.5mm
- Flange to Knob Length
- 0.905 in
- Flange Thickness
- 12.5 mm
- Taper Size
- BT30
- Angle Radius
- 90 Degrees
- Knob Outside Dia.
- 0.5900 in
- Neck Diameter
- 7 mm
- Flange to Beginning of Knob Length
- 8 mm
- Knob Outside Diameter
- 11 mm
- Flange to End of Knob Length
- 23 mm
- Wire Rope Length
- 43 mm
- Length
- 43 mm
Details
- Item
- Retention Knob
- Material
- Steel
- Features
- All Mating Surfaces Precision Ground, Hardened for Maximum Longevity
- Coolant Through
- No
- Angle
- 30 to 90 Degrees
- Coolant Fed
- Non-Coolant Through
Description
Retention Knob, Taper Size BT30, Thread Size M12, Angle Radius 90 Degrees , Knob Outside Dia. 0.5900 in, Coolant Fed Non-Coolant Through, Features All Mating Surfaces Precision Ground, Hardened for Maximum Longevity
