Shop TECHNIKS

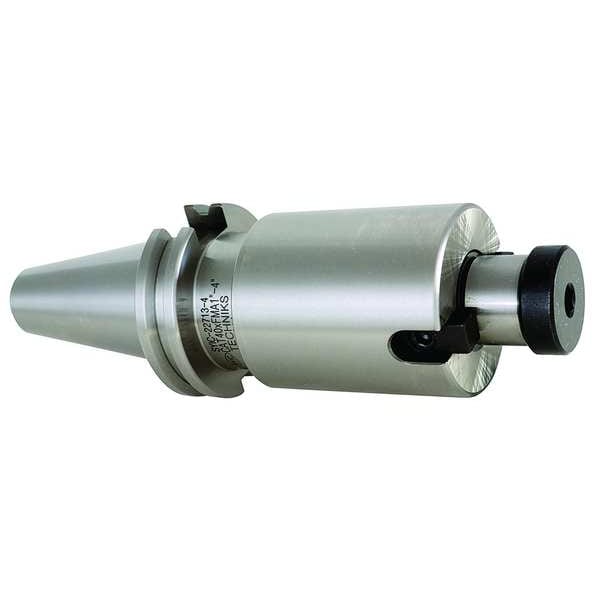

Taper Adaptor, 5-7/16in L, 1.0in. dia.

  • Mfr # 22713

  • Zoro # G9406941

product price:  $138.99
/ea
Free Shipping & Returns

Key Features

Material
Steel
Taper Size
CAT40
Projection
2.06 in
For Use With
Face Mills
Standards
DIN 69871-AD
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
22713
Zoro #
G9406941
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Taper Size
CAT40
Pilot Dia.
1 in
Nose Dia.
1.1900 in
Pilot Length
0.69 in
Head Diameter
2 13/64 in
Body Diameter
2.2 in
Drive Key Length
0.38 in
Lock Screw Size
1.19 in
Pilot Diameter
1 in

Details

Material
Steel
Item
Face Mill Holder
Projection
2.06 in
For Use With
Face Mills
Standards
DIN 69871-AD
Coolant Fed
Non-Coolant Through
Shank Type - Machining
Taper
Features
Taper Ground to AT3 Tolerance or Better
Measurement System
Inch
Contact Type
Single Contact
T.I.R. Tolerance
0.0002 in
Coolant Supply
Coolant Through
Compatible Drive Key Model Number
WF1-1.75
Compatible Lock Screw Model Number
FMAKEY-1
Includes Lock Screw
Lock Screw Included
Product Type
Shell Mill Holder

Description

Taper Adaptor, V-Flange, FMA, Capacity 1 In., For Use With Face Mill Arbors, Application For Holding Tools, Overall Length (In.) 5-7/16, Hole Dia. 1.0 In., End Single, Projection 2.06 In., Standards DIN 69871-AD, Taper CAT40
