  11. Tool Holder, 8-3/4in L, 1.0in. dia.

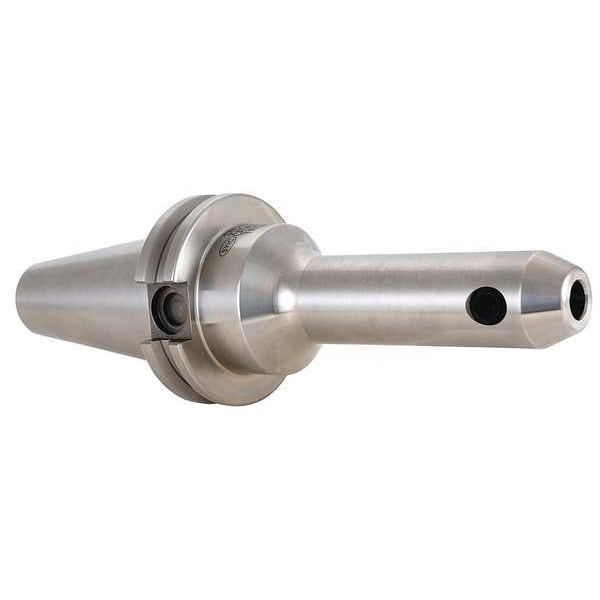

Techniks Tool Holder, 8-3/4in L, 1.0in. dia. 22925-6 - main

Tool Holder, 8-3/4in L, 1.0in. dia.

  • Mfr # 22925-6

  • Zoro # G9407133

product price: $164.99
/ea
Free Shipping & Returns

Key Features

Thread
3/4-16
For Use With
End Mill Cutter
Standards
DIN 69871-AD
Hole Dia.
1.0
Dia.
2.0"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
22925-6
Zoro #
G9407133
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Hole Dia.
1.0
Dia.
2.0"
Nose Dia.
2 in
Bore Dia.
1 in
Socket Depth (In.)
4.559
Taper Size
CAT40
Dimension Type
Decimal Inch
Overall Length (In.)
8-3/4
Overall Diameter
2 1/2 in
Body Diameter
1.75 in
Nose Diameter
2 in
Bore Diameter
1 in
Body Width
1.75 in

Details

Thread
3/4-16
For Use With
End Mill Cutter
Standards
DIN 69871-AD
Series
SLN
Projection
6 in
Type
V-Flange
Item
End Mill Holder
Taper
CAT40
End
Single
Application
For Holding Tools
Measurement System
Inch
Features
Balanced to 15,000 RPM @ G6.3, Improved T.I.R. for extended Cutting Tool Life, Tapered body design Reduces Vibration and Enhances Rigidity, Increased Rigidity and Accuracy during Heavy Side Loads
Shank Type - Machining
Taper
End Type
Single End
Bore Tolerance
H5
Coolant Supply
Coolant Through-Spindle
Speed - Maximum
15,000 RPM
Balance Rating
G6.3
Product Type
End Mill Holder
T.I.R. Tolerance
0.0002 in
Contact Type
Single Contact

Description

End Mill Holder, Taper Size CAT40, Bore Dia. 1 in, Projection 6 in, Nose Dia. 2 in, Measurement System Inch, End Type Single End
