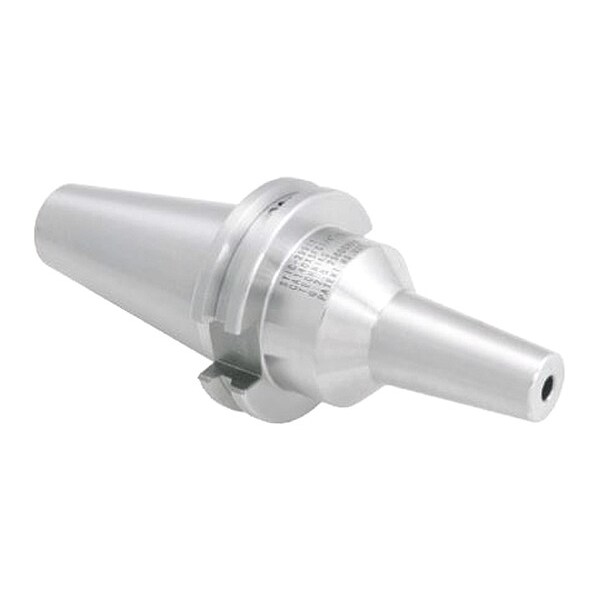

Tool Holder, CAT 40 x SF 8mm x 100mm
Mfr # 29212
Zoro # G7662197
product price: $300.99
/ea
Free Shipping & Returns
Key Features
Dimension Type
Metric
Projection
100.00mm
Bore Dia.
8.00mm
Taper Size
CAT40
Standards
ANSI, ISO
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
29212
Zoro #
G7662197
UPC #
-
Country of Origin
Taiwan, Province of China
Dimensions
Dimension Type
Metric
Bore Dia.
8.00mm
Taper Size
CAT40
Nose Dia.
21.00mm
Insert Size
0.1560"
Details
Item
End Mill Holder and Adapter
Projection
100.00mm
Standards
ANSI, ISO
Finish - Machining
TiN
Features
Maximum T.I.R. only 0.0001"
Thread Pitch
0.50mm-1.50mm
Material Grade - Machining
DVK10
Measurement System
Metric
Coolant Fed
Coolant Through
Cutting Direction
Left Hand
Cutting Application
Threading
ANSI Code
C5-C6
Rake
Positive
Description
End Mill Holder and Adapter, Taper Size CAT40, Bore Dia. 8.00mm, Projection 100.00mm, Nose Dia. 21.00mm, Measurement System Metric
