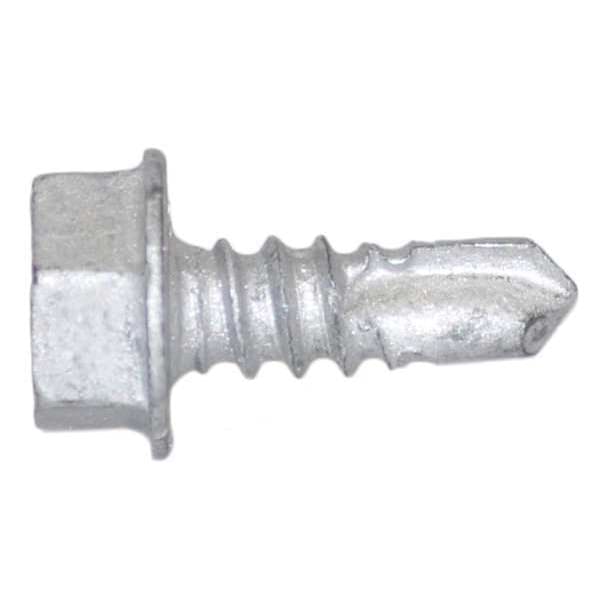

Self-Drilling Screw, #10 x 1/2 in, Climaseal Steel Flange Hex Head External Hex Drive, 500 PK

  • Mfr # 1397000
  • Zoro # G4990036
CAD Available

product price:
$
65.75
/pk of 500, $0.13/ea

Key Features

Flange Hex Head
External Hex Drive
Drilling Tip
CAD Drawing
Screw Size
#10
System of Measurement
Inch
Drive Size
5/16 in
Material
Steel
Finish
Climaseal
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
1397000
Zoro #
G4990036
UPC #
092097922594
Country of Origin
Taiwan, Province of China
CAD Available
Yes
System of Measurement
Inch
Head Type
Flange Hex
Drive
External Hex
Tip Type
Drilling
Material
Steel
Finish
Climaseal
Materials for Use With
Metal
Collated
Non-Collated
Thread Style
Partially Threaded
Item
Self-Drilling Screw
Standards
ICC ESR-1976
Application
Accessories to Steel Framing, Brick Ties to Steel Framing, Clips to Steel Framing, Duct Straps to Steel Framing
Head Angle (Deg.)
90
Head Color
Silver
Material Grade/Class
C1022
Dimensional Standards
UNF
Pack Size
Small
Type
Self-Drilling Screw
Shell Material
Steel
Traction Material
Steel

Dimensions

Screw Size
#10
Fastener Length
1/2 in
Drive Size
5/16 in
Drill Point Size
3
Head Height
0.172 in
Head Dia.
0.415 in
Hex Width
0.313 in
Drill Tip Length
23/64 in
Overall Length
1/2 in
Maximum Drilling Thickness
0.175 in
Washer Outside Diameter
0.4 in
Head Width
0.313 in
Maximum Head Width
5/16 in
Maximum Head Height
11/64 in
Thread Size
#10-16
Wire Rope Length
1/2 in
Length
1/2 in

Description

The TEKS - 1397000 is a Self-Drilling Screw, a type of fastener equipped with a drill point at the end. This allows it to be driven directly into materials without the need for pre-drilled holes. Constructed of steel and coated with Climaseal, a treatment known to provide certain levels of durability and corrosion resistance, these screws are commonly used in industrial and commercial settings such as metal fabrication, construction, and assembly.

  • Application: These screws can be used in a variety of applications such as attaching accessories to steel framing, brick ties to steel framing, clips to steel framing, duct straps to steel framing.
  • CAD Available: A Computer-Aided Design (CAD) file is available for these self-drilling screws which can be incorporated into digital project plans.
  • Drive: The External Hex drive requires specific tools like hex wrenches or drivers for installation or removal.
  • Fastener Length: With a length of 1/2 inch, these screws determine how deeply they can penetrate and secure materials together.
  • Head Type: The Flange Hex head type offers benefits like ease of use with specific tools or suitability for certain materials and applications.
  • Material Grade/Class: C1022 grade is an indicator of the material's properties which may include strength, durability or resistance against corrosion. Suitability should be determined based on individual project requirements.
  • Screw Size: #10 screw size refers only the diameter; secure fit into materials in industrial applications depends on several factors beyond just this measurement."
  • Standards Compliance: Complies with ICC ESR-1976 standards which set out certain technical specifications related design safety & performance. Compliance does not guarantee absolute safety or performance.
