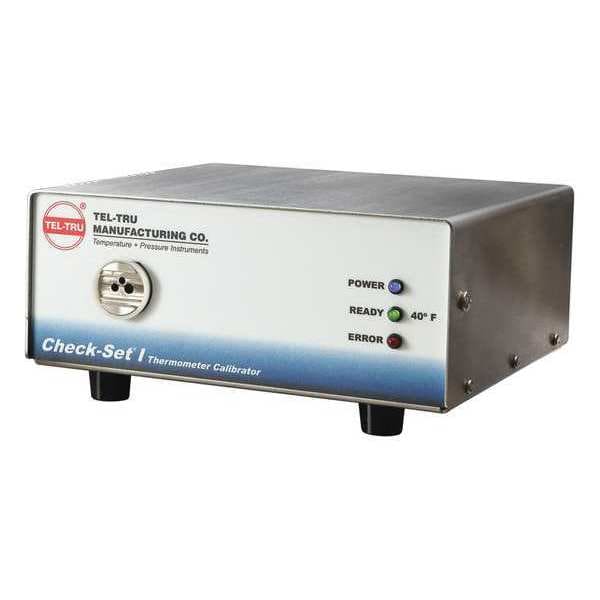

Thermometer Calibrator, 115VDC, 4-1/2" H

  • Mfr # CSI-F42-310

  • Zoro # G5892595


product price: $1,557.99
/ea
Free Shipping & Returns

Key Features

Temp. Range
40 Degrees F
Accuracy
+/-0.2 Degrees F
Calibration Certificate
NIST Traceable
Height
4 1/2 in
Temp. Stability
+/-0.2 Degrees F
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CSI-F42-310
Zoro #
G5892595
UPC #
-
Country of Origin
United States

Dimensions

Height
4 1/2 in
Well Depth
6 in
Stem Hole Dia.
0.187 in, 0.25 in, 0.375 in
Width
8 7/8 in
Depth
8 3/4 in
Overall Width
8.88 in
For Stem Diameter
0.187 in, 0.250 in, 0.375 in
Overall Depth
8.75 in
Overall Dimensions
4 1/4 in H x 8 7/8 in W x 8 3/4 in D
Overall Height
4.25 in
Well Size
6 in Dia x 8 in D Well
Well Diameter
6 in

Details

Item
Thermometer Calibrator
Temp. Range
40 Degrees F
Accuracy
+/-0.2 Degrees F
Calibration Certificate
NIST Traceable
Temp. Stability
+/-0.2 Degrees F
Temp. Accuracy
+/-0.2 Degrees F
Removable Inserts
Yes
Power Required
115V AC ( +/-10%), 50/60 Hz
Loop Supply Voltage
115V DC
Agency Compliance
HACCP
Typical Heating Time
5 min to 40 Degrees F
Handle Type
Optional Strap #96100224
Stabilization Time
7 min
Typical Cooling Time
7 min
Calibrator Application
Cold Food Holding Temperature (for 40 Degrees F)
Calibrator Construction
304 Stainless Steel
Cold Block Maximum Temperature F
40 Degrees F
Application
Food Safety, HACCP Compliance, Instrument Calibration and Service, Plant Quality Assurance, Process Control
Cold Block Temperature Range
40 Degrees F
Power Source Details
115V
Temperature Accuracy
+/-0.2 Degrees F
Cold Block Minimum Temperature F
40 Degrees F
Stability
+/-0.2 Degrees F
Probe Connection Types
3/16 in, 1/4 in, 3/8 in
Power Source
Plug-In
Includes NIST-Traceable Certificate
Yes
Calibrator Accuracy
+/-0.02 Degrees F
Temperature Set Points
40 Degrees F
Repeatability
0.02 Degrees F, 0.1 Degrees C
Typical Settling Time
5 min
Calibrator Weight
9 lb
Calibrator Type
Field Metrology Well
Number of Set Points
1
Single Well/Dual Well
Single Well
Brand and Series
Tel-Tru Check-Set
Interchangeable Insert
No
Standards
HACCP
With Process Connections
No
Set Point Style
Fixed

Description

Drywall Temperature Calibrator, Field Metrology Well, Tel-Tru Check-Set, Temperature Set Points 40 Degrees F, Cold Block Temperature Range 40 Degrees F, Number of Set Points 1, 4 1/4 in H x 8 7/8 in W x 8 3/4 in D
