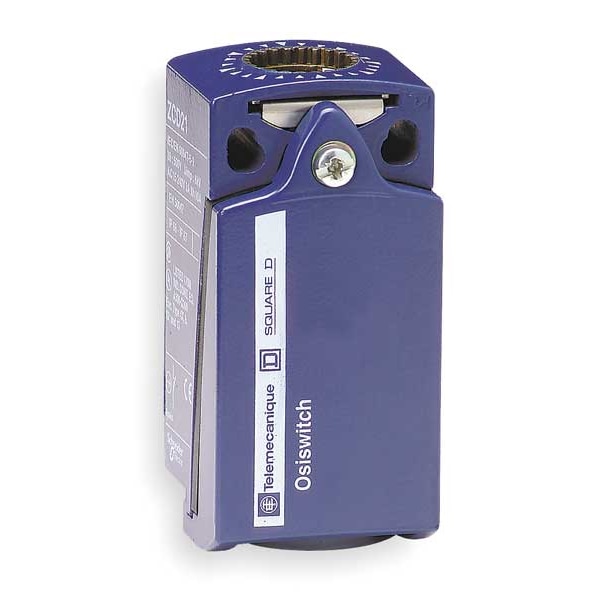

1NC/1NO Compact Limit Switch Body IP 66, 67

  • Mfr # ZCD21

  • Zoro # G3103317

product price:  $51.35
/ea

Key Features

For Use With
XCKM Series Limit Switches
Operating Temp.
-13 Degrees to 158 Degrees F
Contact Form
1NO/1NC
Series
XCKM
NEMA Rating
1, 12, 2, 3, 4
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
ZCD21
Zoro #
G3103317
UPC #
785901290438
Country of Origin
Multiple

Dimensions

Width
31 mm
Depth
30 mm
Height
65-65 mm
Manufacturer Warranty Length
18 mo
Overall Depth
1.18 in
Overall Width
1.22 in
Mounting Hole Diameter
0.17 in
Overall Height
2.56 in

Details

Item
Limit Switch Body
For Use With
XCKM Series Limit Switches
Operating Temp.
-13 Degrees to 158 Degrees F
Contact Form
1NO/1NC
Series
XCKM
NEMA Rating
1, 12, 2, 3, 4
Electrical Connection
Screw Terminal
AC Contact Rating
1.5 A @ 240 V
IP Rating
IP66, IP67
Standards
EN/IEC 60947-5-1
DC Contact Rating
0.1 A @ 250 V
Body Material
zamak
Material
Metal
Electrical Durability
5000000 cycles, DC-13 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Contacts Type And Composition
1 NC + 1 NO
Contact Operation
snap action
Ambient Air Temperature For Storage
-40-70°C
Minimum Actuation Speed
0.01 m/s
Positive Opening
with
Associated Head
ZCE66 || ZCEH0 || ZCE08 || ZCE21 || ZCE14 || ZCE13 || ZCE24 || ZCE07 || ZCE02 || ZCE29 || ZCE01 || ZCE63 || ZCE06 || ZCE28 || ZCE27 || ZCE64 || ZCE09 || ZCE65 || ZCE62 || ZCE11 || ZCEH2 || ZCE10 || ZCE05 || ZCE67
Short-Circuit Protection
10 A cartridge fuse gG
Series Name
Standard compact
[Uimp] Rated Impulse Withstand Voltage
6 kV IEC 60664 || 6 kV IEC 60947-1
Device Short Name
ZCD
Contacts Insulation Form
Zb
Ambient Air Temperature For Operation
-25-70°C
Number Of Poles
2
Contacts Material
silver plated contacts
[Ui] Rated Insulation Voltage
300 VUL 508 || 500 V 3)IEC 60947-1 || 300 VCSA C22.2 No 14
Contact Code Designation
B300, AC-15 (Ue = 240 V), Ie = 1.5 A EN/IEC 60947-5-1 appendix A || R300, DC-13 (Ue = 250 V), Ie = 0.1 A EN/IEC 60947-5-1 appendix A
Body Type
fixed
Design
compact
Associated Connection Component
ZCDEG13 || ZCDEF12 || ZCDEN12 || ZCDEP20 || ZCDEP16 || ZCDEG11
Product Compatibility
XCKD
Product Or Component Type
limit switch body
Number of Mounting Holes
2
Indicating Light
No Indicating Light Included
Body Configuration
Non Plug-In
NEMA Enclosure Rating
1, 12, 2, 3, 4
Operating Temperature - Minimum
-13 Degrees F
Operating Temperature - Maximum
158 Degrees F
Compatible with Manufacturer Model Number
ZCE01, ZCE02, ZCE05, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEH0, ZCEH2
Compatible with Series
XCKD
Mounting Hole Horizontal Center to Center Distance
21 mm
Compatible Manufacturer Part Number
ZCE01, ZCE02, ZCE05, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEH0, ZCEH2
Compatible Manufacturer Model Number
ZCE01, ZCE02, ZCE05, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEH0, ZCEH2
Compatible with Manufacturer Model No.
ZCE01, ZCE02, ZCE05, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEH0, ZCEH2
Compatible with Mfr. Model No.
ZCE01, ZCE02, ZCE05, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEH0, ZCEH2
For Use with Mfr Model Number
ZCE01, ZCE02, ZCE05, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEH0, ZCEH2
For Use With Mfr. Model Number
ZCE01, ZCE02, ZCE05, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEH0, ZCEH2
Compatible Pump Manufacturer Part Number
ZCE01, ZCE02, ZCE05, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEH0, ZCEH2
Compatible Mfr. Model Number
ZCE01, ZCE02, ZCE05, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEH0, ZCEH2
For Manufacturer Part Number
ZCE01, ZCE02, ZCE05, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEH0, ZCEH2
Compatible with Mfr. Model Number
ZCE01, ZCE02, ZCE05, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEH0, ZCEH2

Description

Compact Limit Switch Body, Contact Form 1NO/1NC, For Use With XCKM Series Limit Switches, AC Contact Rating 1.5 A @ 240 V, NEMA Rating 1, 12, 2, 3, 4, Electrical Connection Screw Clamp Terminals, IP Rating IP66, IP67, Operating Temp. -13 Degrees to 158 Degrees F, Standards EN/IEC 60947-5-1
