  15. 1NC/1NO Compact Limit Switch Body IP 66, 67

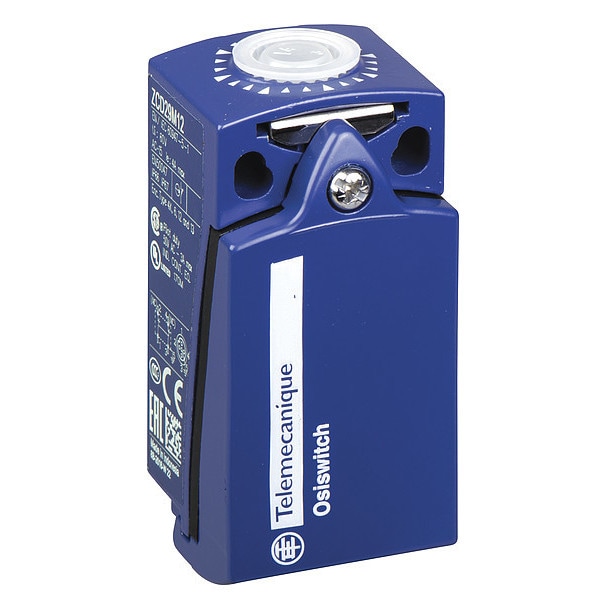

Telemecanique Sensors 1NC/1NO Compact Limit Switch Body IP 66, 67 ZCD21M12 - main

1NC/1NO Compact Limit Switch Body IP 66, 67

  • Mfr # ZCD21M12

  • Zoro # G7049016

product price: $98.49
/ea
Free Shipping & Returns

Key Features

For Use With
XCKM Series Limit Switches
Electrical Connection
5-Pin M12 Male Connector
IP Rating
IP66, IP67
AC Contact Rating
3 A @ 50 V
Operating Temp.
-13 Degrees to 158 Degrees F
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZCD21M12
Zoro #
G7049016
UPC #
785901914174
Country of Origin
Indonesia

Dimensions

Width
31 mm
Depth
30 mm
Height
65-65 mm
Overall Depth
1.18 in
Manufacturer Warranty Length
18 mo
Overall Height
2.56 in
Overall Width
1.22 in
Mounting Hole Diameter
0.17 in

Details

Item
Compact Limit Switch Body
For Use With
XCKM Series Limit Switches
Electrical Connection
5-Pin M12 Male Connector
IP Rating
IP66, IP67
AC Contact Rating
3 A @ 50 V
Operating Temp.
-13 Degrees to 158 Degrees F
Contact Form
1NO/1NC
Series
XCKM
Standards
EN/IEC 60947-5-1
NEMA Rating
1, 12, 2, 3, 4
Material
Metal
DC Contact Rating
0.27 A @ 50 V
Body Material
zamak
Electrical Durability
5000000 cycles, DC-13 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Body Configuration
Non Plug-In
Indicating Light
No Indicating Light Included
Operating Temperature - Maximum
158 Degrees F
Number of Mounting Holes
2
Mounting Hole Horizontal Center to Center Distance
21 mm
Operating Temperature - Minimum
-13 Degrees F
NEMA Enclosure Rating
1, 12, 2, 3, 4
Compatible with Series
XCKD
Compatible with Manufacturer Model Number
ZCE01, ZCE02, ZCE05, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEH0, ZCEH2
[Uimp] Rated Impulse Withstand Voltage
6 kV IEC 60664 || 6 kV IEC 60947-1
Series Name
Standard compact
Contacts Material
silver plated contacts
Device Short Name
ZCD
Contacts Insulation Form
Zb
[Ui] Rated Insulation Voltage
300 VUL 508 || 500 V 3)IEC 60947-1 || 300 VCSA C22.2 No 14
Contacts Type And Composition
1 NC + 1 NO
Body Type
fixed
Contact Operation
snap action
Ambient Air Temperature For Operation
-25-70°C
Contact Code Designation
B300, AC-15 (Ue = 240 V), Ie = 1.5 A EN/IEC 60947-5-1 appendix A || R300, DC-13 (Ue = 250 V), Ie = 0.1 A EN/IEC 60947-5-1 appendix A
Ambient Air Temperature For Storage
-40-70°C
Number Of Poles
2
Associated Head
ZCE24 || ZCE13 || ZCE63 || ZCE02 || ZCE21 || ZCE66 || ZCE07 || ZCE08 || ZCE06 || ZCE09 || ZCE64 || ZCE27 || ZCE28 || ZCE65 || ZCE11 || ZCEH0 || ZCE01 || ZCE05 || ZCE14 || ZCE67 || ZCE29 || ZCE10 || ZCEH2 || ZCE62
Maximum Resistance Across Terminals
25 mOhm IEC 60255-7 category 3
[Ie] Rated Operational Current
3 A 50 V, AC-15 EN/IEC 60947-5-1 appendix A || 0.27 A 50 V, DC-13 EN/IEC 60947-5-1 appendix A
Short-Circuit Protection
10 A cartridge fuse gG
Minimum Actuation Speed
0.01 m/s
Product Or Component Type
limit switch body
Product Compatibility
XCKD
Positive Opening
with
Design
compact
[Ithe] Conventional Enclosed Thermal Current
4 A
Compatible Manufacturer Part Number
ZCE01, ZCE02, ZCE05, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEH0, ZCEH2
Compatible Manufacturer Model Number
ZCE01, ZCE02, ZCE05, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEH0, ZCEH2
Compatible with Manufacturer Model No.
ZCE01, ZCE02, ZCE05, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEH0, ZCEH2
Compatible with Mfr. Model No.
ZCE01, ZCE02, ZCE05, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEH0, ZCEH2
For Use with Mfr Model Number
ZCE01, ZCE02, ZCE05, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEH0, ZCEH2
For Use With Mfr. Model Number
ZCE01, ZCE02, ZCE05, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEH0, ZCEH2
Compatible Pump Manufacturer Part Number
ZCE01, ZCE02, ZCE05, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEH0, ZCEH2
Compatible Mfr. Model Number
ZCE01, ZCE02, ZCE05, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEH0, ZCEH2

Description

Compact Limit Switch Body, Contact Form 1NO/1NC, For Use With XCKM Series Limit Switches, AC Contact Rating 3 A @ 50 V, NEMA Rating 1, 12, 2, 3, 4, Electrical Connection 5-Pin M12 Male Connector, IP Rating IP66, IP67, Operating Temp. -13 Degrees to 158 Degrees F, Standards EN/IEC 60947-5-1
