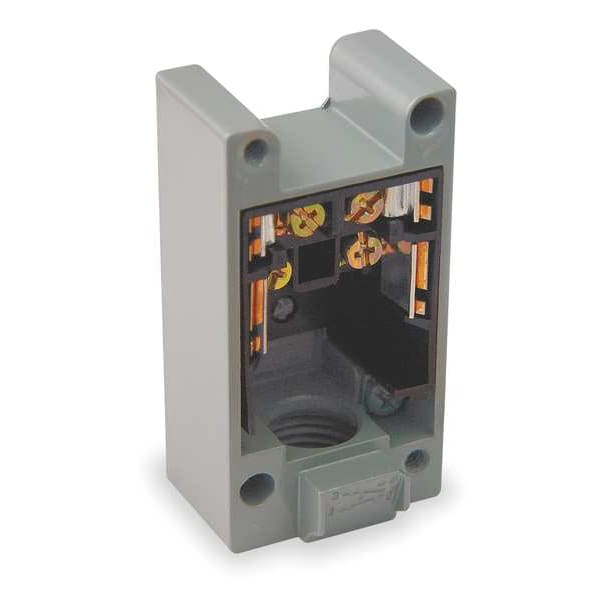

Telemecanique Sensors 1NC/1NO Limit Switch Base 9007CT54 - main

1NC/1NO Limit Switch Base

  • Mfr # 9007CT54

  • Zoro # G0438207

product price: $22.40
/ea

Key Features

For Use With
Mfr. No. SPDT Series
Material of Construction
Zinc Die Cast
Body Material
Zinc Die Cast
Conduit Size
1/2"-14 NPT
Contact Form
1NO/1NC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9007CT54
Zoro #
G0438207
UPC #
785901500902
Country of Origin
Mexico

Dimensions

Conduit Size
1/2"-14 NPT
Height
3.14-3.14 in
Depth
0.9 in
Width
1.55 in
Overall Length
3.14 in
Overall Depth
0.9 in
Conduit Connection Size
1/2"-14
Overall Width
1.55 in
Manufacturer Warranty Length
18 mo
Mounting Hole Diameter
0.2 in

Details

Item
Limit Switch
For Use With
Mfr. No. SPDT Series
Material of Construction
Zinc Die Cast
Body Material
Zinc Die Cast
Contact Form
1NO/1NC
Electrical Connection
Screw-Clamp Terminal
Standards
ANSI B1.20.1
Material
Zinc
Product Type
Limit Switch Base
Mechanical Durability
10000000 cycles
Vibration Resistance
25 gn 10-150 Hz)IEC 60068-2-6
Shock Resistance
60 gn 9 ms IEC 60068-2-27
Mounting Hole Vertical Center to Center Distance
60 mm
Compatible with Series
9007C
NEMA Enclosure Rating
12, 13, 2, 4, 6, 6P
Operating Temperature - Minimum
-20 Degrees F
Conduit Connection Type
NPT
Number of Mounting Holes
2
Compatible with Manufacturer Model Number
9007C054
Operating Temperature - Maximum
185 Degrees F
Mounting Style
Diagonal Side
Body Configuration
Plug-In
Mounting Hole Horizontal Center to Center Distance
30 mm
Cable Entry
1 entry for 1/2" - 14 NPT ANSI B1.20.1
Electrical Shock Protection Class
class 0 IEC 61140
Product Or Component Type
limit switch base
Ambient Air Temperature For Storage
-20-185°F
Device Short Name
9007C
Product Compatibility
9007C
Associated Connection Component
9007CO54
Ip Degree Of Protection
IP67 conforming to IEC 60529
Associated Head
9007C
Series Name
heavy duty
Body Type
standard plug-in
Protective Treatment
epoxy powder coat
Environmental Characteristic
standard environment
Ambient Air Temperature For Operation
-20-185°F standard environment
Nema Degree Of Protection
NEMA 1 Nema type 250 || NEMA 2 Nema type 250 || NEMA 4 Nema type 250 || NEMA 6 Nema type 250 || NEMA 6P Nema type 250 || NEMA 12 Nema type 250 || NEMA 13 Nema type 250
Compatible Manufacturer Part Number
9007C054
Compatible Manufacturer Model Number
9007C054
Compatible with Manufacturer Model No.
9007C054
Compatible with Mfr. Model No.
9007C054
For Use with Mfr Model Number
9007C054
For Use With Mfr. Model Number
9007C054
Compatible Pump Manufacturer Part Number
9007C054
Compatible Mfr. Model Number
9007C054

Description

Limit Switch, Contact Form 1NO/1NC, Material of Construction Zinc Die Cast, Conduit Size 1/2 In.-14 NPT, For Use With Mfr. No. SPDT Series
