  8. 1NC/1NO Limit Switch Body Nema 1, 2, 3, 4, 12 IP 66

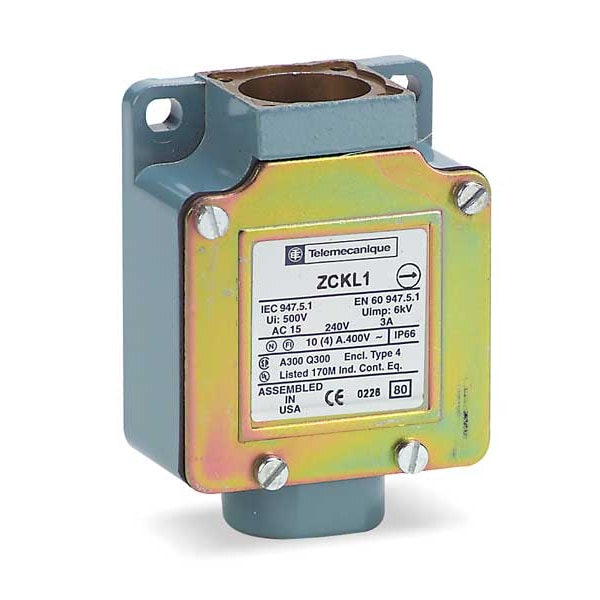

Telemecanique Sensors 1NC/1NO Limit Switch Body Nema 1, 2, 3, 4, 12 IP 66 ZCKL1H7 - main

1NC/1NO Limit Switch Body Nema 1, 2, 3, 4, 12 IP 66

  • Mfr # ZCKL1H7

  • Zoro # G3493061

product price:  $118.99
/ea
Free Shipping & Returns

Key Features

For Use With
XCKL Series Limit Switches
NEMA Rating
1, 12, 2, 3, 4
Series
XCKL
Standards
EN 50047
AC Contact Rating
3 A @ 240 V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZCKL1H7
Zoro #
G3493061
UPC #
785901466703
Country of Origin
France

Dimensions

Depth
30 mm
Height
72-72 mm
Width
52 mm
Mounting Hole Diameter
0.2 in
Overall Width
2.05 in
Manufacturer Warranty Length
18 mo
Overall Depth
1.18 in
Overall Height
2.83 in

Details

Item
Limit Switch Body
For Use With
XCKL Series Limit Switches
NEMA Rating
1, 12, 2, 3, 4
Series
XCKL
Standards
EN 50047
AC Contact Rating
3 A @ 240 V
Contact Form
1NO/1NC
Operating Temp.
-13 Degrees to 158 Degrees F
Electrical Connection
Screw Clamp Terminals
IP Rating
IP66
Material
Metal
Body Material
metal
DC Contact Rating
0.27 A @ 250 V
Electrical Durability
5000000 cycles, DC-13 120 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 13 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 9 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Number Of Steps
1 1 position
Minimum Actuation Speed
0.01 m/min
Short-Circuit Protection
10 A cartridge fuse gG
Ambient Air Temperature For Operation
-25-70°C standard environment
Terminals Description Iso N°1
(23-24)NO || (13-14)NO
Ambient Air Temperature For Storage
-40-70°C
Number Of Poles
2
Ip Degree Of Protection
IP66
Product Compatibility
XCKL
Contact Operation
snap action
Product Or Component Type
limit switch body
Environmental Characteristic
standard environment
Ik Degree Of Protection
IK05
Positive Opening
with
[Ie] Rated Operational Current
3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 appendix A || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 appendix A
Maximum Resistance Across Terminals
0.25 mOhm IEC 60255-7 category 3
[Uimp] Rated Impulse Withstand Voltage
6 kV IEC 60664 || 6 kV IEC 60947-1
[Ithe] Conventional Enclosed Thermal Current
10 A
Associated Head
ZCKD23 || ZCKD239 || ZCKD91 || ZCKD59 || ZCKD17 || ZCKD41 || ZCKD05 || ZCKD21 || ZCKD029 || ZCKD16 || ZCKD02 || ZCKD06 || ZCKD81 || ZCKD10 || ZCKD109 || ZCKD15 || ZCKD08 || ZCKD219
Cable Entry
1 entry tapped for 1/2" NPT conduit
Contacts Material
silver plated contacts
Body Type
fixed
Contacts Type And Composition
1 NC + 1 NO
Series Name
standard format
Device Short Name
ZCKL
[Ui] Rated Insulation Voltage
500 V 3)IEC 60947-1 contact block || 300 VCSA C22.2 No 14 contact block || 300 VUL 508 contact block
Terminals Description Iso N°1
(23-24)NO || (13-14)NO
NEMA Enclosure Rating
1, 12, 2, 3, 4
Compatible with Series
XCKL
Compatible with Manufacturer Model Number
ZCKD02, ZCKD029, ZCKD05, ZCKD06, ZCKD08, ZCKD10, ZCKD109, ZCKD15, ZCKD16, ZCKD17, ZCKD21, ZCKD219, ZCKD23, ZCKD239, ZCKD41, ZCKD59, ZCKD81, ZCKD91
Indicating Light
No Indicating Light Included
Operating Temperature - Minimum
-13 Degrees F
Body Configuration
Non Plug-In
Mounting Hole Horizontal Center to Center Distance
41 mm
Operating Temperature - Maximum
158 Degrees F
Number of Mounting Holes
2
Compatible Manufacturer Part Number
ZCKD02, ZCKD029, ZCKD05, ZCKD06, ZCKD08, ZCKD10, ZCKD109, ZCKD15, ZCKD16, ZCKD17, ZCKD21, ZCKD219, ZCKD23, ZCKD239, ZCKD41, ZCKD59, ZCKD81, ZCKD91
Compatible Manufacturer Model Number
ZCKD02, ZCKD029, ZCKD05, ZCKD06, ZCKD08, ZCKD10, ZCKD109, ZCKD15, ZCKD16, ZCKD17, ZCKD21, ZCKD219, ZCKD23, ZCKD239, ZCKD41, ZCKD59, ZCKD81, ZCKD91
Compatible with Manufacturer Model No.
ZCKD02, ZCKD029, ZCKD05, ZCKD06, ZCKD08, ZCKD10, ZCKD109, ZCKD15, ZCKD16, ZCKD17, ZCKD21, ZCKD219, ZCKD23, ZCKD239, ZCKD41, ZCKD59, ZCKD81, ZCKD91
Compatible with Mfr. Model No.
ZCKD02, ZCKD029, ZCKD05, ZCKD06, ZCKD08, ZCKD10, ZCKD109, ZCKD15, ZCKD16, ZCKD17, ZCKD21, ZCKD219, ZCKD23, ZCKD239, ZCKD41, ZCKD59, ZCKD81, ZCKD91
For Use with Mfr Model Number
ZCKD02, ZCKD029, ZCKD05, ZCKD06, ZCKD08, ZCKD10, ZCKD109, ZCKD15, ZCKD16, ZCKD17, ZCKD21, ZCKD219, ZCKD23, ZCKD239, ZCKD41, ZCKD59, ZCKD81, ZCKD91
For Use With Mfr. Model Number
ZCKD02, ZCKD029, ZCKD05, ZCKD06, ZCKD08, ZCKD10, ZCKD109, ZCKD15, ZCKD16, ZCKD17, ZCKD21, ZCKD219, ZCKD23, ZCKD239, ZCKD41, ZCKD59, ZCKD81, ZCKD91
Compatible Pump Manufacturer Part Number
ZCKD02, ZCKD029, ZCKD05, ZCKD06, ZCKD08, ZCKD10, ZCKD109, ZCKD15, ZCKD16, ZCKD17, ZCKD21, ZCKD219, ZCKD23, ZCKD239, ZCKD41, ZCKD59, ZCKD81, ZCKD91
Compatible Mfr. Model Number
ZCKD02, ZCKD029, ZCKD05, ZCKD06, ZCKD08, ZCKD10, ZCKD109, ZCKD15, ZCKD16, ZCKD17, ZCKD21, ZCKD219, ZCKD23, ZCKD239, ZCKD41, ZCKD59, ZCKD81, ZCKD91

Description

Limit Switch Body, Contact Form 1NO/1NC, For Use With XCKL Series Limit Switches, AC Contact Rating 3 A @ 240 V, NEMA Rating 1, 12, 2, 3, 4, Electrical Connection Screw Clamp Terminals, IP Rating IP66, Operating Temp. -13 Degrees to 158 Degrees F, Standards EN 50047
