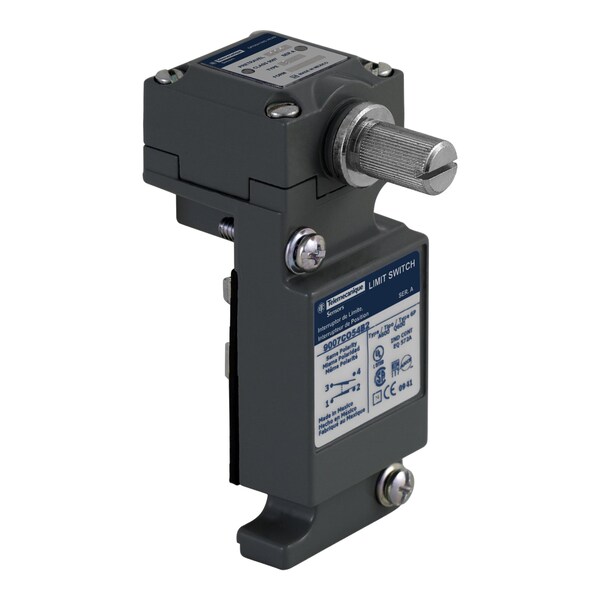

Telemecanique Sensors 1NC/1NO Limit Switch Body Nema 1, 2, 4, 6, 6P, 12, 13 9007CO54B2 - main
Shop TELEMECANIQUE SENSORS

1NC/1NO Limit Switch Body Nema 1, 2, 4, 6, 6P, 12, 13

  • Mfr # 9007CO54B2

  • Zoro # G2664523

product price:  $168.99
/ea
Free Shipping & Returns

Key Features

For Use With
Type 9007 C Standard Limit Switches
Operating Temp.
-20 Degrees to 185 Degrees F
IP Rating
IP67
NEMA Rating
1, 12, 13, 2, 4, 6, 6P
Standards
CSA, UL Listed
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9007CO54B2
Zoro #
G2664523
UPC #
785901530718
Country of Origin
Mexico

Dimensions

Height
3.14-3.14 in
Depth
1.79 in
Width
1.55 in
Overall Width
1.55 in
Overall Height
3.14 in
Manufacturer Warranty Length
18 mo
Overall Depth
1.79 in

Details

Item
Limit Switch Body
For Use With
Type 9007 C Standard Limit Switches
Operating Temp.
-20 Degrees to 185 Degrees F
IP Rating
IP67
NEMA Rating
1, 12, 13, 2, 4, 6, 6P
Standards
CSA, UL Listed
AC Contact Rating
10 A @ 120 V
Electrical Connection
Plug In
Contact Form
1NO/1NC
Body Material
zinc alloy
Switch Function
SPDT-DB
Material
Zinc
Head Type
rotary head
Vibration Resistance
25 gn 10-150 Hz)IEC 60068-2-6
Operating Temperature - Maximum
185 Degrees F
Compatible with Series
9007C
Body Configuration
Plug-In
NEMA Enclosure Rating
1, 12, 13, 2, 4X, 6, 6P
Operating Temperature - Minimum
-20 Degrees F
[Ie] Rated Operational Current
10 A 120 V AC, A600
Device Short Name
9007C
Series Name
heavy duty
Product Or Component Type
limit switch plug-in unit
Terminals Description Iso N°1
(3-4)NO || (1-2)NC
Ip Degree Of Protection
IP67 conforming to IEC 60529
Switch Actuation
CW and CCW
Specificity Of Operator
standard pre-travel
Nema Degree Of Protection
NEMA 1/2/4X/6/6P/12/13 Nema type 250
Ambient Air Temperature For Storage
-20-185°F
Torque Value
4 lbf.in
Type Of Operator
spring return lever arm to be ordered separately
[Ui] Rated Insulation Voltage
600 VCE || 600 VCSA || 600 VUL 508
Protective Treatment
epoxy powder coat
Electrical Shock Protection Class
class 0 IEC 61140
Contacts Material
silver alloy (Ag/Ni)
Contact Operation
snap action
Contacts Type And Composition
NC-NO

Description

Limit Switch Body, Contact Form 1NO/1NC, For Use With Type 9007 C Standard Limit Switches, AC Contact Rating 10 A @ 120 V, NEMA Rating 1, 12, 13, 2, 4, 6, 6P, Electrical Connection Plug In, IP Rating IP67, Operating Temp. -20 Degrees to 185 Degrees F, Standards CSA, UL Listed
