- MFR #
- XCSM3716L2
- Zoro #
- G3624241
- UPC #
- -
- Country of Origin
- Indonesia
- Item

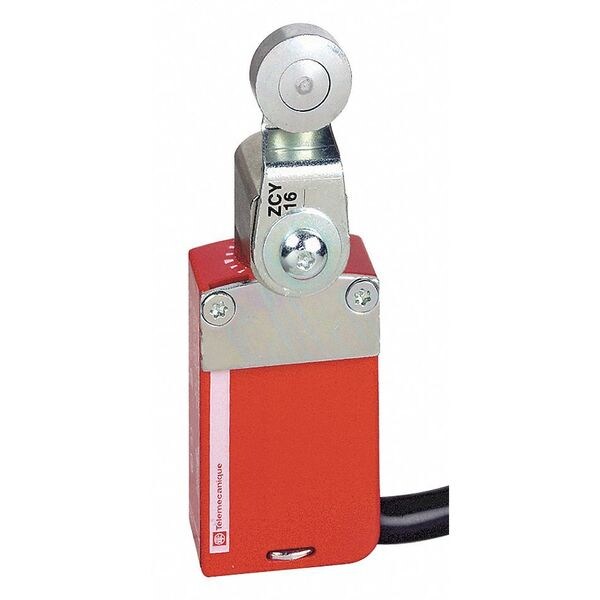

- Safety Interlock Switch
- Style
- Metal Roller Lever
- Series
- XCSM
- AC Contact Rating
- 1.5 A @ 300 V
- DC Contact Rating
- 0.1 A @ 300 V
- Contact Form
- 1NC/1NC/1NO
- Connection Type
- 6.6 ft Dead End Cable
- IP Rating
- IP66, IP67, IP68
- Operating Temp. Range
- -13 Degrees to 158 Degrees F
- Standards
- CSA C22.2 No 14, EN 1088, EN/IEC 60204-1, EN/IEC 60947-5-1, UL 508
- Operating Force
- 4.4 in-lb
- Head Material
- Zamak
- Body Material
- Zamak
- Description/Special Features
- Plastic Cover, Secured by 5-Lobe Socket Head Safety Screw, Rotary Head, 0.88 lb in Positive Opening Minimum Torque
- Movement
- Horizontal
- Electrical Connection
- 6.6 ft Dead End Cable
- Features
- Rotary Head, Includes 5-Lobe Socket Head Safety Screw
- Material
- metal
- Vibration Resistance
- 25 gn 10-500 Hz)IEC 60068-2-6
- Mechanical Durability
- 10000000 cycles
- Shock Resistance
- 25 gn 18 ms IEC 60068-2-27
- Head Type
- rotary head
- Contact Code Designation
- B300, AC-15 (Ue = 240 V, Ie = 1.5 A)EN 60947-5-1 || B300, AC-15 (Ue = 240 V, Ie = 1.5 A)EN/IEC 60947-5-1 appendix A || R300, DC-13 (Ue = 250 V, Ie = 0.1 A)EN 60947-5-1 || R300, DC-13 (Ue = 250 V, Ie = 0.1 A)EN/IEC 60947-5-1 appendix A
- Cable Composition
- 7 x 0.5 mm²
- Contacts Type And Composition
- 1 NC + 1 NC + 1 NO
- Positive Opening Minimum Torque
- 0.1 N.m
- Short-Circuit Protection
- 6 A cartridge fuse gG (gl)
- Ip Degree Of Protection
- IP66 conforming to IEC 60529 || IP67 conforming to IEC 60529 || IP68 conforming to IEC 60529
- Switch Actuation
- by 30° cam
- Minimum Actuation Speed
- 6 m/min
- Fixing Mode
- by the body
- Maximum Resistance Across Terminals
- 25 MOhm IEC 60255-7 category 3
- Type Of Approach
- lateral approach
- Maximum Actuation Speed
- 1.5 m/s
- Safety Level
- can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 with the appropriate monitoring system and correctly wired IEC 61508
- Protection Technology
- plastic protective cover, secured by 5-lobe socket head safety screw
- Type Of Operator
- steel roller lever
- Ambient Air Temperature For Storage
- -40-70°C
- [Ui] Rated Insulation Voltage
- 300 VUL 508 || 400 V 3)IEC 60947-5-1 || 300 VCSA C22.2 No 14
- Design
- miniature
- Ambient Air Temperature For Operation
- -25-70°C
- Number Of Poles
- 3
- Product Certifications
- CSA || UL
- Protective Treatment
- TC
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV IEC 60664 || 4 kV IEC 60947-1
- Ik Degree Of Protection
- IK06 EN 50102
- Positive Opening
- with NC contact
- Contact Operation
- slow-break, break before make
- Product Or Component Type
- safety limit switch
- Minimum Torque For Tripping
- 0.5 N.m
- Repeat Accuracy
- 0.05 mm on the tripping points
- Component Name
- XCSM
- Electrical Shock Protection Class
- class I NF C 20-030 || class I EN/IEC 61140
- Operating Temperature - Minimum
- -13 Degrees F
- Mechanical Operating Durability
- 10,000,000
- Operating Temperature - Maximum
- 158 Degrees F
- Circuitry Action
- Slow Action
- Operating Torque
- 4.4 in-lb
- Actuator Material
- Metal
- Resistance Properties
- Shock Resistant, Vibration Resistant
