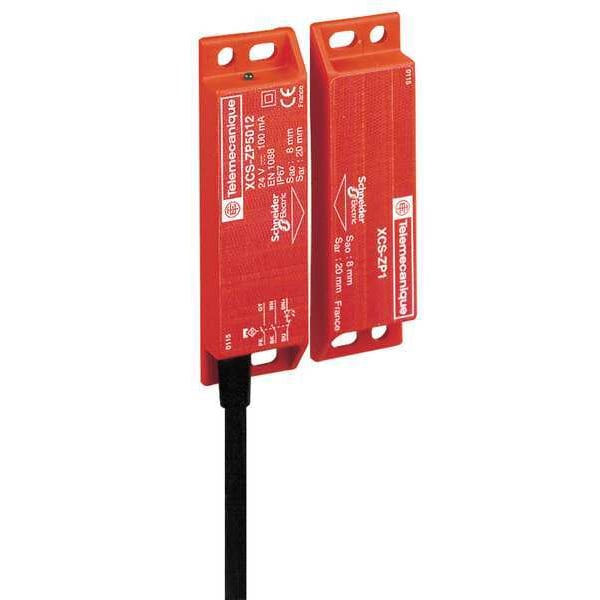

2NC/1NO Magnetically Actuated Safety Interlock Switch

  • Mfr # XCSDMP7002

  • Zoro # G3661332

product price:
$
178.99
/ea
Free Shipping & Returns

Key Features

Series
XCSDM
DC Contact Rating
0.1 A @ 24 V
Contact Form
1NC
Height
88 mm
Width
25 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
XCSDMP7002
Zoro #
G3661332
UPC #
785901515951
Country of Origin
France
Item
Magnetically Actuated Safety Interlock Switch
Series
XCSDM
DC Contact Rating
0.1 A @ 24 V
Contact Form
1NC
IP Rating
IP66, IP67
Operating Temp. Range
-13 Degrees to 185 Degrees F
Termination Type
Pre-Cabled
Body Material
Plastic
Includes
Actuator
Standards
CSA, RoHS, UL Listed
On Sensing Distance
0.31 in
Off Sensing Distance
0.79 in
Material
plastic
Electrical Connection
pre-cabled
Electrical Durability
1200000 cycles
Vibration Resistance
10 gn 10-150 Hz)IEC 60068-2-6
Shock Resistance
30 gn 11 ms IEC 60068-2-27
Switch Type
Coded Switch
Body Style
Rectangular
Off Sensing Distance - Maximum
0.79 in
Operating Temperature - Minimum
-13 Degrees F
Operating Temperature - Maximum
185 Degrees F
On Sensing Distance - Maximum
0.31 in
Insulation Resistance
1000 MOhm
Contacts Type And Composition
2 NC + 1 NO
Approach Directions
3 directions
Ip Degree Of Protection
IP66 conforming to IEC 60529 || IP67 conforming to IEC 60529
Resistance Across Terminals
10 Ohm
Safety Level
can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 with the appropriate monitoring system and correctly wired EN/IEC 61508
[Ui] Rated Insulation Voltage
100 V DC
Ambient Air Temperature For Operation
-25-85°C
[Sa] Assured Operating Distance
8 mm
Component Name
XCSDMP
Switching Frequency
150 Hz
[Sar] Assured Tripping Distance
20 mm
Cable Material
PVC
Number Of Poles
3
Short-Circuit Protection
500 mA external cartridge fuse gG (gl)
Enclosure Material
thermoplastic PBT
Product Or Component Type
coded magnetic switch
Contact Operation
1 NC staggered
Product Certifications
UL || CSA
[Uimp] Rated Impulse Withstand Voltage
2.5 kV EN/IEC 60947-5-1
Ambient Air Temperature For Storage
-40-85°C
Breaking Capacity
10 VA
Switching Capacity In Ma
0.1...100 mA
Maximum Sensitivity To Magnetic Fields
0.3 mT
Contacts Material
rhodium
Protective Treatment
TH
Maximum [Ie] Rated Operational Current
100 mA
[Ue] Rated Operational Voltage
24 V DC
Cable Composition
6 x 0.25 mm²
Maximum Switching Voltage
100 V DC
Design
rectangular, standard
Electrical Shock Protection Class
class II EN/IEC 61140

Description

Magnetically Actuated Safety Interlock Switch, Series XCSDM, Switch Width 0.98 in, Switch Height 3.46 in, Switch Depth 0.52 in, Contact Form 1NC, DC Contact Rating 0.1 A @ 24 V, Operating Temp. Range -13 Degrees to 185 Degrees F, Termination Type Pre-Cabled, Cable Length 6.56 ft, IP Rating IP66, IP67, Actuator Width 0.98 in, Actuator Height 3.46 in, Actuator Depth 0.52 in, On Sensing Distance 0.31 in, Off Sensing Distance 0.79 in, Body Material Plastic, Standards CSA, RoHS, UL Listed
