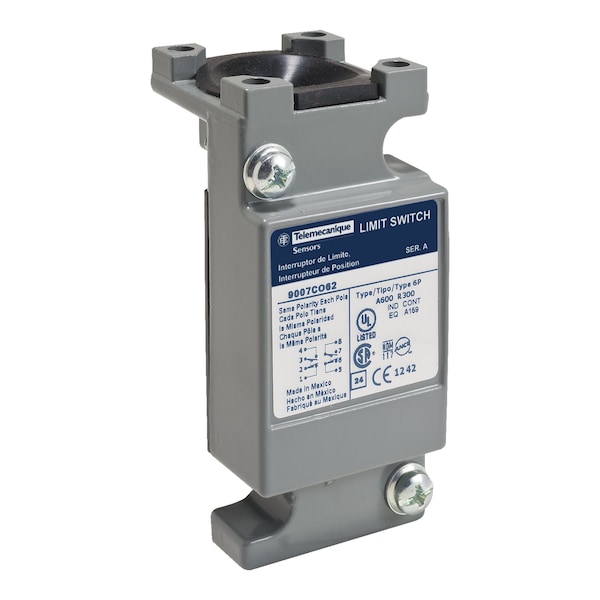

Telemecanique Sensors 2NC/2NO Limit Switch Body Nema 1, 2, 4, 6, 6P, 12, 13 9007CO62 - main

2NC/2NO Limit Switch Body Nema 1, 2, 4, 6, 6P, 12, 13

  • Mfr # 9007CO62

  • Zoro # G1119763

product price: $146.99
/ea
Free Shipping & Returns

Key Features

For Use With
Type 9007 C Standard Limit Switches
NEMA Rating
1, 12, 13, 2, 4, 6, 6P
IP Rating
IP67
Contact Form
2NO/2NC
Operating Temp.
-20 Degrees to 185 Degrees F
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
9007CO62
Zoro #
G1119763
UPC #
785901500858
Country of Origin
Multiple

Dimensions

Width
1.55 in
Depth
1.79 in
Height
3.14-3.14 in
Overall Width
1.55 in
Overall Depth
1.79 in
Overall Height
3.14 in
Manufacturer Warranty Length
18 mo
Mounting Hole Diameter
0.2 in

Details

Item
Limit Switch Body
For Use With
Type 9007 C Standard Limit Switches
NEMA Rating
1, 12, 13, 2, 4, 6, 6P
IP Rating
IP67
Contact Form
2NO/2NC
Operating Temp.
-20 Degrees to 185 Degrees F
Standards
CE, CSA, UL Listed
AC Contact Rating
1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
DC Contact Rating
0.11 A @ 250 V, 0.55 A @ 125 V
Switch Function
DPDT-DB
Material
Zinc
Body Material
zinc
Mechanical Durability
10000000 cycles
Vibration Resistance
25 gn 10-150 Hz)IEC 60068-2-6
Shock Resistance
60 gn 9 ms IEC 60068-2-27
Electrical Durability
1000000 cycles
Number of Mounting Holes
2
Mounting Hole Horizontal Center to Center Distance
30 mm
Body Configuration
Plug-In
Compatible with Series
9007C
Operating Temperature - Minimum
-20 Degrees F
Mounting Hole Vertical Center to Center Distance
60 mm
Indicating Light
No Indicating Light Included
NEMA Enclosure Rating
1, 12, 13, 2, 4, 6, 6P
Operating Temperature - Maximum
185 Degrees F
Short-Circuit Protection
10 A CC non-time delay
Associated Connection Component
9007CT62
[Ithe] Conventional Enclosed Thermal Current
10 A
[Ie] Rated Operational Current
1.2 A 600 V AC, A600 NEMA rating designation || 1.5 A 480 V AC, A600 NEMA rating designation || 3 A 240 V AC, A600 NEMA rating designation || 6 A 120 V AC, A600 NEMA rating designation || 0.11 A 250 V DC, R300 NEMA rating designation || 0.55 A 125 V DC, R300 NEMA rating designation
Environmental Characteristic
standard environment
Nema Degree Of Protection
NEMA 1 Nema type 250 || NEMA 2 Nema type 250 || NEMA 4 Nema type 250 || NEMA 6 Nema type 250 || NEMA 6P Nema type 250 || NEMA 12 Nema type 250 || NEMA 13 Nema type 250
Electrical Shock Protection Class
class 0 IEC 61140
Ip Degree Of Protection
IP67 conforming to IEC 60529
Body Type
standard plug-in
Associated Head
9007C
Product Or Component Type
limit switch plug-in unit
Ambient Air Temperature For Storage
-20-185°F
Product Compatibility
9007C
Protective Treatment
epoxy powder coat
[Ui] Rated Insulation Voltage
600 V 3)UL 508 contact block || 600 VCSA C22.2 No 14
Terminals Description Iso N°1
(5-6)NC || (7-8)NO || (3-4)NO || (1-2)NC
Number Of Steps
1
Ambient Air Temperature For Operation
-20-185°F standard environment
Series Name
heavy duty
Contact Operation
snap action
Contacts Material
silver contacts
Device Short Name
9007C
Positive Opening
without
[Uimp] Rated Impulse Withstand Voltage
2.5 kV AC 1 min CE || 2.2 kV AC 1 min UL || 2.64 kV AC 1 s CSA
Contacts Type And Composition
2(NC-NO)
Number Of Poles
2

Description

Limit Switch Body, Contact Form 2NO/2NC, For Use With Type 9007 C Standard Limit Switches, AC Contact Rating 1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V, NEMA Rating 1, 12, 13, 2, 4, 6, 6P, Electrical Connection Not Applicable, IP Rating IP67, Operating Temp. -20 Degrees to 185 Degrees F, Standards CE, CSA, UL Listed
