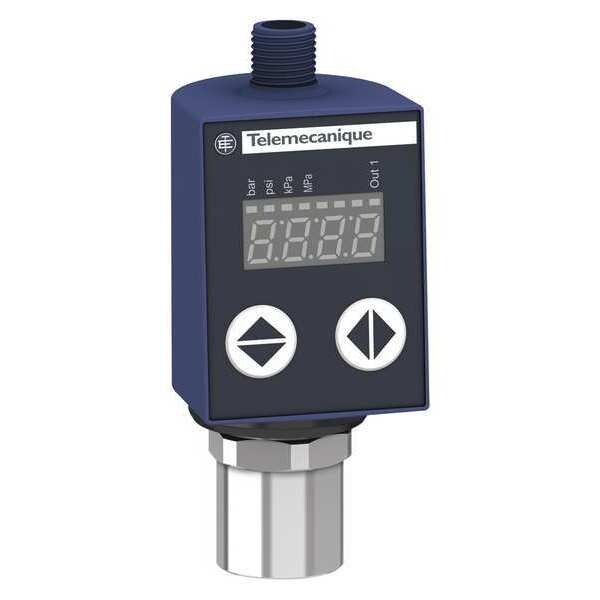

Air Pressure Sensor, 0 to 145 psi
Mfr # XMLR010G1P26
Zoro # G1662276
product price: $418.99
/ea
Free Shipping & Returns
Key Features
Range
0 to 145 psi
Analog Output
4 to 20mA
Control Output
PNP
On/Off Setting
Programmable
Max. Pressure
580.1 psi
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
XMLR010G1P26
Zoro #
G1662276
UPC #
785901185710
Country of Origin
China
Dimensions
Overall Height
3.94 in
Overall Width
1.61 in
Overall Depth
1.65 in
Description
Fluid and Air Pressure Sensor, Range 0 to 145 psi, Analog Output 4 to 20mA, Control Output PNP, Programmable On/Off Setting, Power Required 24V DC, Process Connection 1/4 in NPT, Electrical Connection 4 Pin M12, Display 4 Digit LED, Wetted Materials Ceramic, Fluorocarbon, Stainless Steel, Housing Material Polyacrylamide, Stainless Steel, Operating Temp. Range - 4 Degrees to 176 Degrees F, IP Rating IP65, IP67, Max. Pressure 580.1 psi, Standards CSA, cULus, EU RoHS, UL Listed
