  11. Alternator Lqd Lvl Swch, 2-1/2" MNPT

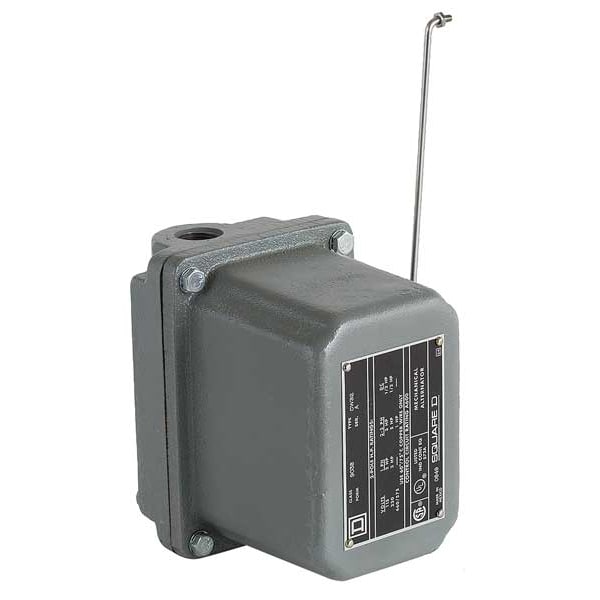

Telemecanique Sensors Alternator Lqd Lvl Swch, 2-1/2" MNPT 9038CW32 - main

Alternator Lqd Lvl Swch, 2-1/2" MNPT

  • Mfr # 9038CW32

  • Zoro # G6446045

product price: $1,107.99
/ea
Free Shipping & Returns

Key Features

Switch Function
Close On Rise
Mounting
Side
Float Travel
6 1/2 in
NEMA Rating
4
Tank Connection Size
2-1/2 in MNPT
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9038CW32
Zoro #
G6446045
UPC #
785901064398
Country of Origin
Mexico

Dimensions

Tank Connection Size
2-1/2 in MNPT
Overall Length
18.5 in
Float Length
7 in
Height
5.94 in
Float Dia.
2.5 in
Conduit Size
2 3/4 in
Stem Length
4 in
Width
6.84 in
Stem Thread Size
2 1/2 in MNPT
Manufacturer Warranty Length
18 mo
Overall Height
7.78 in
Overall Width
7.78 in
Float Diameter
2.5 in

Details

Item
Alternator Closed Liquid Level Switch
Switch Function
Close On Rise
Mounting
Side
Float Travel
6 1/2 in
NEMA Rating
4
Max. Pressure
50 PSI
Operating Temp. Range
-22 Degrees to 200 Degrees F
Contact Form
DPST-4NC
Stem Material
Stainless Steel
Float Position
Left
Max. Voltage
475 V
HP @ 1 Phase - 120V
2 hp
Max. Current
600 A
Float Material
Stainless Steel
Body Material
Steel
HP @ 3 Phase - 240V
5 hp
Includes
Rod and Float
Electrical Connections
Screw Clamp
Standards
CE, CSA, CSA File LR25490, UL Listed, UL 50, UL 508, UL File E12158
HP @ 1 Phase - 240V
3 hp
Float Rod Angle
90 Degrees
Enclosure Material
Cast Aluminium
Product Type
Alternator Closed Liquid Level Switch
Minimum Media Specific Gravity
0.85
NEMA Enclosure Rating
4
Horsepower @ Single Phase - 120V AC
2 hp
Operating Temperature - Maximum
220 Degrees F
Voltage Rating - Maximum
575 V
Horsepower @ Single Phase - 240V AC
3 hp
Mounting Style
Closed Tank Vertical
Proof Pressure
50 psi
Series
9038C
Electrical Connection
Screw Clamp
Operating Temperature - Minimum
-22 Degrees F
Horsepower @ Three Phase - 240V AC
5 hp
Product Destination
for closed tank
Motor Power Kw
1.5 kW 2 hp)115 V AC, 1 phase || 2.2 kW 3 hp)115 V AC, 3 phase || 2.2 kW 3 hp)230 V AC, 1 phase || 3.7 kW 5 hp)230 V AC, 3 phase || 0.75 kW 1 hp)460 V AC, 3 phase || 0.75 kW 1 hp)475 V AC, 3 phase || 0.18 kW 0.25 hp)32 V DC || 0.37 kW 0.5 hp)115 V DC || 0.37 kW 0.5 hp)230 V DC
Operating Position
vertical position only
Electrical Circuit Type
power circuit
Product Certifications
CSA file LR25490 || UL listed file E12158
[Ui] Rated Insulation Voltage
575 V UL 508
Kit Composition
float switch || float || rod
Device Application
closed tank with bushing
Terminals Description Iso N°1
line-load-load-line
Materials In Contact With Fluid
nitrile (Buna-N) or equivalent rubber || cast iron || stainlesss steel 304 || yellow brass || stainless steel 316
Local Signalling
with external pointer
Factory Modification
without
Float Movement
6.5...13 in adjustable
Device Mounting
screw-in bushing
Maximum Operating Rate
60 cyc/mn
Ambient Air Temperature For Storage
-22-220°F
Terminal Block Type
8 terminals
Contact Operation
contacts close on liquid rise
Controlled Fluid
fresh water specific gravity of 0.85 in or higher 0-220°F || sea water specific gravity of 0.85 in or higher 0-220°F || hydraulic oil specific gravity of 0.85 in or higher 0-220°F || corrosive fluid specific gravity of 0.85 in or higher 0-220°F
Nema Degree Of Protection
NEMA 4 UL 50
Electrical Durability
100 cycles 60 cyc/mn
Cable Entry Number
2 conduit entries for 3/4"-14 NPT UL 508
Product Or Component Type
mechanical alternator
Mechanical Durability
300 cycles
Product Specific Application
mechanically alternating the operation of two pumps or motors
Device Short Name
9038C
Short-Circuit Protection
20 A cartridge fuse gG
Ambient Air Temperature For Operation
-22-220°F
Contacts Type And Composition
4 NC, snap action, DPST-DB, Form YY

Description

Alternator Closed Liquid Level Switch, Switch Function Close On Rise, Side Mounting, Float Travel 6 1/2 in, NEMA Rating 4, Tank Connection Size 2-1/2 in MNPT, Max. Pressure 50 psi, Operating Temp. Range -22 Degrees to 200 Degrees F, Overall Length 18.5 in, Float Material Stainless Steel, Float Length 7 in, Float Dia. 2.5 in, Stem Material Stainless Steel, Stem Length 4 in, Height 5.94 in, Width 6.84 in, Contact Form DPST-4NC, Max. Voltage 475 V, HP @ 1 Phase - 120V 2 hp, HP @ 1 Phase - 240V 3 hp
