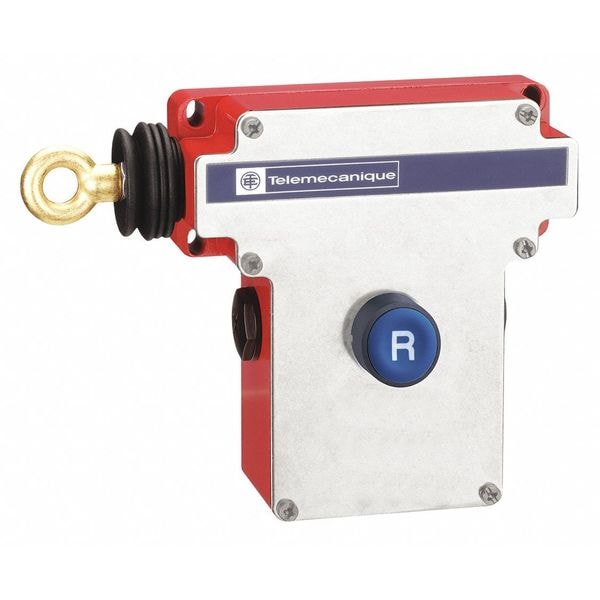

Cable Pull Switch, 10A, Left, 1NO+1NC

Cable Pull Switch, 10A, Left, 1NO+1NC

Mfr # XY2CE2A150H7
Zoro # G2707336

$470.99

Free Shipping & Returns

Key Features

Switch Function

Maintained

Mounting Style

Single End

AC Contact Rating

3 A @ 240 V

Contact Form

1NO/1NC

Reset

Push Button

See all product information

Get a 10% off coupon

Free 30-day returns

Return Policy

Get 30 days to pay with Net 30

Apply Now

Real support from real people

Contact our U.S. based team

Specifications

Product Information

MFR #

XY2CE2A150H7

Zoro #

G2707336

UPC #

785901609100

Country of Origin

Morocco

Dimensions

Length

9.0 in

Depth

4.13 in

Width

9.02 in

Length (Straight Wireway)

9.0 in

Trigger Cable Maximum Length

70 m

Overall Depth

4.13 in

Manufacturer Warranty Length

18 mo

Overall Width

9.02 in

Details

Item

Emergency Cable Pull Switch

Switch Function

Maintained

Mounting Style

Single End

AC Contact Rating

3 A @ 240 V

Contact Form

1NO/1NC

Reset

Push Button

Max. Cable Span

165 ft

NEMA Rating

1, 12, 4

Indicator

No Indicator

Switching Ability

Single Cable

DC Contact Rating

0.27 A @ 250 V

Case Material

Zamak

Wiring Entry

1/2 in NPT

IP Rating

IP65

Thermal Amperage

10 A

For Use With

Preventa XPS Safety Relays

Cable Connection Location

Left

Standards

CCC, CSA, CSA C22.2 No. 14 Machinery Directive 2006/42/EC, EN/IEC 60204-1, EN/IEC 60947-5, EN/IEC 60947-5-5, EN/ISO 13850, UL 508, Work Equipment Directive 2009/104/EC

Series

XY2CH

Body Material

zamak

Overvoltage Category

class I EN/IEC 61140 || class I NF C 20-030

[Uimp] Rated Impulse Withstand Voltage

6 kV EN/IEC 60947-1

Short-Circuit Protection

10 A cartridge fuse gG EN/IEC 60269

Compatibility Code

XY2CE

Local Signalling

without pilot light

Safety Level

can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 with the appropriate monitoring system and correctly wired EN/IEC 61508

Shock Resistance

50 gn 11 ms EN/IEC 60068-2-27

Connections - Terminals

screw clamp terminal, 1 x 0.5 to 2 x 1.5 mmÂ²

Marking

Number Of Cables

Product Or Component Type

latching emergency stop rope pull switch

[Ithe] Conventional Enclosed Thermal Current

10 A

Cover Material

stainless steel

Protective Treatment

[Ui] Rated Insulation Voltage

500 V 3)EN/IEC 60947-1 || 300 VUL 508 || 300 VCSA C22.2 No 14

Ambient Air Temperature For Operation

-25-70Â°C

Housing Colour

red RAL 3000

Tightening Torque

0.8-1.2 N.m

Product Certifications

UL category NISD emergency stop devices || CSA || CCC

Terminals Description Iso N°1

(21-22)NC || (13-14)NO

Ip Degree Of Protection

IP66 IEC 60529

[Ie] Rated Operational Current

3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 appendix A || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 appendix A

Trigger Cable Anchor Point

RH side

Distance Between Cable Supports

5-5 m

Positive Opening

with EN/IEC 60947-5-1

Mechanical Durability

60000 cycles

Vibration Resistance

10 gn 10-300 Hz)EN/IEC 60068-2-6

Contact Operation

slow-break

Cable Entry Number

3 tapped entry 1/2" NPT conduit entry

Contacts Type And Composition

1 NC + 1 NO

Device Short Name

XY2CE

Ambient Air Temperature For Storage

-40-70Â°C

Maximum Resistance Across Terminals

25 MOhm EN/IEC 60255-7 category 3 || 25 MOhm NF C 93-050 method A

Terminals Description Iso NÂ°1

(21-22)NC || (13-14)NO

Thermal Current

10 A

Cable Span - Maximum

164 ft

Action

Maintained

Operating Temperature - Maximum

158 Degrees F

NEMA Enclosure Rating

1, 12, 4

Operating Temperature - Minimum

-13 Degrees F

Description

Emergency Cable Pull Switch, Switch Function Maintained, Mounting Style Single End, AC Contact Rating 3 A @ 240 V, Contact Form 1NO/1NC, Push Button Reset, Max. Cable Span 165 ft, Operating Force Not Applicable, NEMA Rating 1, 12, 4, Indicator No Indicator, Cable Connection Location Left, Thermal Amperage 10 A, Length 9.0 in, Width 9.02 in, Depth 4.13 in, Switching Ability Single Cable, DC Contact Rating 0.27 A @ 250 V, Min. Current Not Applicable, Case Material Zamak, Wiring Entry 1/2 in NPT
