Shop TELEMECANIQUE SENSORS

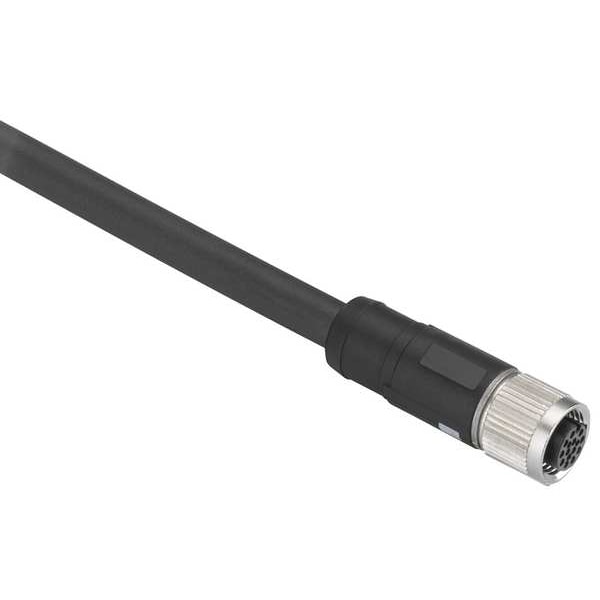

Cable Straight With Female M12 Conn 10M

  • Mfr # XZCP29P11L10

  • Zoro # G0566310

product price:
$
66.65
/ea

Key Features

For Use With
AC Powered Sensors
Temp. Range
-31 Degrees to 194 Degrees F
Standards
cULus
Cable Length
10 m
End 2 Number of Pins
8
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
XZCP29P11L10
Zoro #
G0566310
UPC #
785901672647
Country of Origin
Czechia

Dimensions

Cable Length
10 m
Cable Outer Diameter
5.2 mm

Details

Item
Cable Straight With Female M12 Conn 10M
For Use With
AC Powered Sensors
Temp. Range
-31 Degrees to 194 Degrees F
Standards
cULus
End 2 Number of Pins
8
Jacket Material
PUR
End 2 Gender and Plug End
Female Straight
End 1 Thread
M12
Number of Conductors
8
IP Rating
IP67
Max. Amps
2 A
Jacket Color
Black
End 1 Gender and Plug End
Female Straight
End 1 Connection Type
M12
End 2 Keyway
Single
Max. Voltage
30 V AC, 36 V DC
End 1 Keyway
Single
End 1 Number of Pins
8
End 2 Connection Type
M12
End 2 Thread
M12
End 2 Number of Keyways
1
End 1 Number of Keyways
1
Minimum Operating Temperature
-31 Degrees F
Maximum Operating Temperature
194 Degrees F
End 2 Mounting Orientation
Straight
Cable Jacket Color
Black
End 2 Gender
Female
Number of Wires
8
End 1 Gender
Female
End 1 Mounting Orientation
Straight
Cable Jacket Material
PUR
Cordset Type
Double-Ended
[Ue] Rated Operational Voltage
30 V AC || 36 V DC
Cable Composition
8 x 0.25 mm²
Ambient Air Temperature For Storage
-35-100°C
Cable Connector Fixing
screw-on
Product Certifications
cULus
Line Rated Current
2A
Accessory / Separate Part Category
cabling accessory
Status Led
without
Wire Insulation Material
PUR
Electrical Connection
straight female connector M12, 8 pins
Minimum Insulating Resistance
1 GΩ
Series Name
Application
Accessory / Separate Part Type
pre-wired connectors
Ip Degree Of Protection
IP67
Contact Resistance
5000µOhm
Ambient Air Temperature For Operation
-35-90°C static || -5-90°C flexing
Collar Material
stainless steel 316L

Description

Cable Straight With Female M12 Conn 10M, End 1 Gender Female, End 1 Thread M12, End 1 Number of Pins 8, End 1 Mounting Orientation Straight, End 1 Connection Type M12, End 2 Gender Female, End 2 Thread M12, End 2 Mounting Orientation Straight, End 2 Number of Pins 8, End 2 Connection Type M12, Cable Length 10 m, Cable Jacket Color Black, Cable Jacket Material PUR, Max. Amps 2 A, Maximum Operating Temperature 194 Degrees F, Minimum Operating Temperature -31 Degrees F, IP Rating IP67
