  11. Capacitive Sensor M18 12 24V Dc Pnp No N
This item is Discontinued.

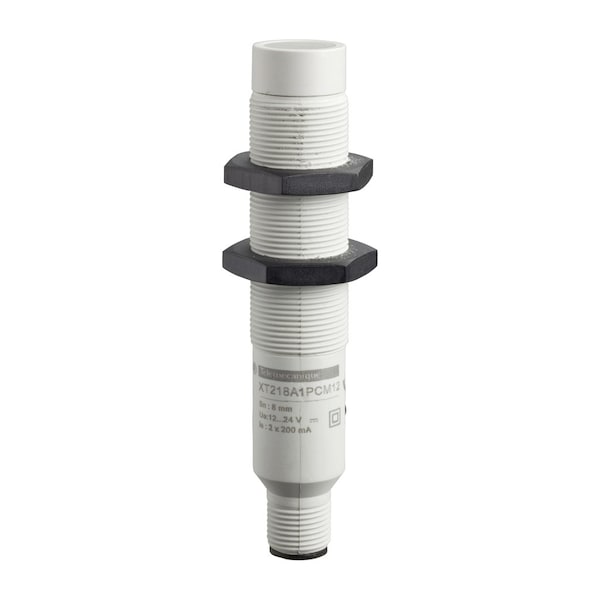

Telemecanique Sensors Capacitive Sensor M18 12 24V Dc Pnp No N XT218A1PCM12

Capacitive Sensor M18 12 24V Dc Pnp No N (Discontinued)

  • Mfr # XT218A1PCM12
  • Zoro # G0860231
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XT218A1PCM12
Zoro #
G0860231
UPC #
785901467717
Country of Origin
China

Dimensions

Length
78 mm
Overall Height
78 mm
Overall Diameter
24 mm

Details

Item
Capacitive Cylindrical Proximity Sensor
Proximity Sensor Style
Cylindrical M18
Proximity Sensing Method
Capacitive
Proximity Sensor Power Requirement
12 to 24V DC
Proximity Sensor Output Circuit Type
4-Wire DC PNP
Output Mode
1 NC + 1 NO
Max. Detecting Distance
8 mm
Proximity Sensor Electrical Connection
Male Connector M12, 4 Pins
Basic Proximity Sensor Case Material
Plastic
Proximity Sensor Operating Frequency
Less than Or Equal to 200 Hz
Operating Temp. Range
-10 to 60 Degrees C
Description/Special Features
Frontal Detection Face; Short-Circuit Protection; Sensitivity By Potentiometer; Output State Indication 1 LED Yellow
IP Rating
IP67
Max. Current Load
25 mA; Switching Current: 400 mA
Electrical Connection
M12
Standards
CE, cUL
Features
Reverse Polarity Protection
Application
detection of insulated or conductive materials
Shock Resistance
30 gn 11 ms IEC 60068-2-27
Differential Travel
< 1...20 % Sr
Body Type
fixed
Maximum Delay Response
15 ms
Vibration Resistance
10 gn 1 mm 10-55 Hz)IEC 60068-2-6
Maximum Voltage Drop
<2.5 V closed)
Maximum Delay First Up
100 ms
Maximum Delay Recovery
15 ms
Series
XT2
Supply Voltage Limits
10-30 V DC
Electrical Installation Type
Direct Connector
Style
Cylindrical
Operating Temperature - Minimum
14 Degrees F
AC Voltage Rating
Not Rated
Sensing Distance - Maximum
8 mm
Output Circuit Contact Form
NO/NC
Sensing Method
Capacitive
Switching Frequency
200 Hz
Number of Pins
4
DC Voltage Rating
12-24V DC
Output Circuit Number of Wires
4
Includes Indicator Lights
Indicator Lights Included
Body Material
Plastic
Operating Temperature - Maximum
140 Degrees F
Output Circuit Type
PNP

Description

Capacitive Cylindrical Proximity Sensor, IP Rating IP67, Standards CE, cUL
