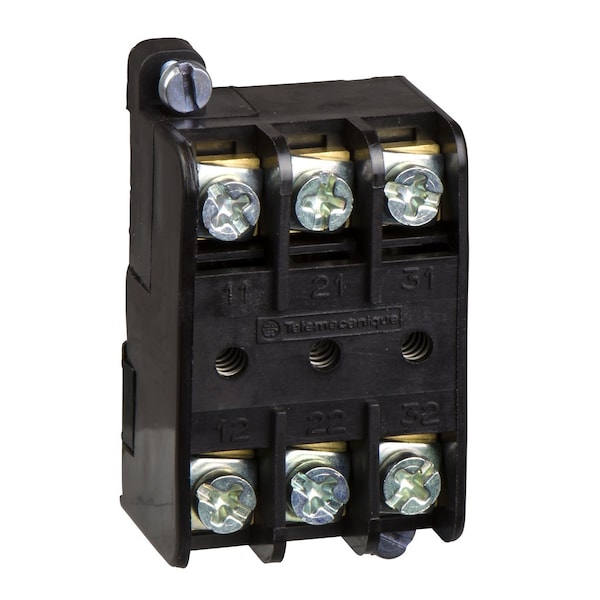

Telemecanique Sensors Contact block, Harmony XAC, pendant station 240 V AC, 3 A, xe XENT2991 - main

Contact block, Harmony XAC, pendant station 240 V AC, 3 A, xe

  • Mfr # XENT2991

  • Zoro # G7685234

product price:  $56.35
/ea

Key Features

Type of Operator
spring return
Contact Form
3 NC; single
Contact Rating
slow-break
Standards
CSA C22.2 No 14, EN/IEC 60947-5-1, UL 508
Voltage
400 V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
XENT2991
Zoro #
G7685234
UPC #
-
Country of Origin
France

Details

Item
PENDANT STATION CONTACT - 240V AC - 3A -
Type of Operator
spring return
Contact Form
3 NC; single
Contact Rating
slow-break
Standards
CSA C22.2 No 14, EN/IEC 60947-5-1, UL 508
Voltage
400 V
Application
emergency stop push-button
Terminal Connection
screw clamp terminal
Contact Block Application
emergency stop push-button
[Ui] Rated Insulation Voltage
400 V 3)IEC 60947-1
Short-Circuit Protection
6 A fuse protection cartridge aM
[Uimp] Rated Impulse Withstand Voltage
4 kV IEC 60947-1
Product or Component Type
contact block
[Ithe] Conventional Enclosed Thermal Current
10A
Vibration Resistance
15 gn 10-500 Hz)IEC 60068-2-6
Contacts Type And Composition
3 NC
Component Name
XENT
Range of Product
Harmony XAC
Terminals Description Iso N°1
(31-32)NC, (11-12)NC, (21-22)NC
Rated Operational Power In W
3000 W AC-23B 400 V
Electrical Circuit Type
control circuit, power circuit
Contact Operation
slow-break
Shock Resistance
70 gn IEC 60068-2-27
Mechanical Durability
3000000 cycles
Product Compatibility
XACB
Contact Block Type
single
Ambient Air Temperature For Operation
-25-70°C
Ambient Air Temperature For Storage
-40-70°C
Connections - Terminals
screw clamp terminals, 1 x 2.5 mm² with or without cable end, screw clamp terminals, 2 x 1.5 mm² with or without cable end
Overvoltage Category
class II IEC 61140
Type Of Operator
spring return

Description

PENDANT STATION CONTACT - 240V AC - 3A -
