Shop TELEMECANIQUE SENSORS

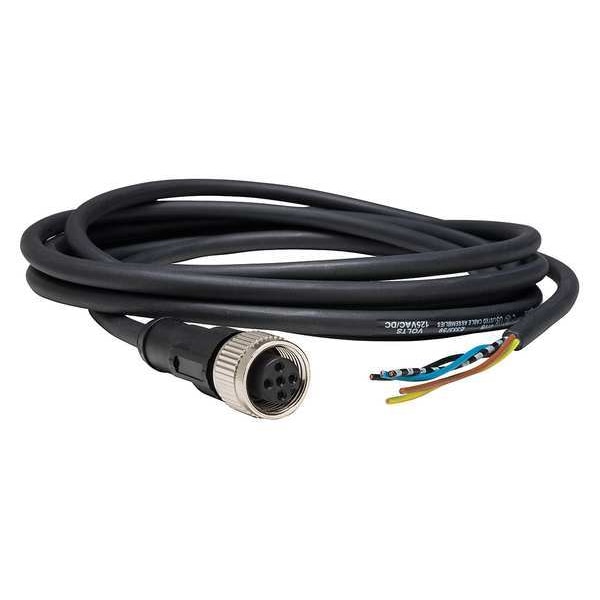

Cordset, 16.4 ft., Black, 250VAC/300VDC

  • Mfr # XZCP1164L5

  • Zoro # G7200417

product price:  $35.49
/ea

Key Features

Product Type
Single Ended
End 1 Number of Pins
5
Wire Size
18 AWG
Cable Length
5 m
Cable Jacket Material
PUR
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
XZCP1164L5
Zoro #
G7200417
UPC #
785901642268
Country of Origin
Czechia

Dimensions

Wire Size
18 AWG
Cable Length
5 m
Cable Outer Diameter
5.9 mm

Details

Item
Cordset
Product Type
Single Ended
End 1 Number of Pins
5
Cable Jacket Material
PUR
Cable Jacket Color
Black
IP Rating
IP65, IP67, IP69K
Max. Amps
4 A
Maximum Operating Temperature
176 Degrees F
End 1 Connection Type
M12
End 1 Gender and Plug End
Female Straight
Features
Good Resistance to Severe Mechanical Stress, Friction, Abrasion, Torsion, Hot and Cold Oils, Greases and Lubricants, Halogen-Free
Temp. Range
-40 Degrees to 80 Degrees C
Standards
CSA Certified, IEC, UL Listed
End 1 Keyway
Single
End 1 Thread
M12
End 2 Connection Type
Bare Wire
Number of Conductors
5
End 2 Gender and Plug End
Bare Wire
Max. Voltage
250 V AC, 300 V DC
End 1 Number of Keyways
1
End 1 Mounting Orientation
Straight
End 1 Gender
Female
Number of Wires
5
Minimum Operating Temperature
-13 Degrees F
Accessory / Separate Part Category
cabling accessory
Collar Material
metal
[Ue] Rated Operational Voltage
60 V AC || 75 V DC
Minimum Insulating Resistance
1 GΩ
Cable Connector Fixing
screw-on
Series Name
general purpose
Line Rated Current
4A
Ambient Air Temperature For Storage
-40-80°C
Electrical Connection
straight female connector M12, 5 pins (included earth pin)
Accessory / Separate Part Type
pre-wired connectors
Ambient Air Temperature For Operation
-40-80°C static || -5-80°C flexing
Status Led
without
Contact Resistance
5000µOhm
Cable Composition
5 x 0.34 mm²
Product Certifications
cULus

Description

Cordset, End 1 Gender Female, End 1 Thread M12, End 1 Number of Pins 5, End 1 Mounting Orientation Straight, End 1 Connection Type M12, End 2 Gender Not Applicable, End 2 Thread Not Applicable, End 2 Connection Type Bare Wire, Cable Length 5 m, Cable Jacket Color Black, Cable Jacket Material PUR, Max. Amps 3 A, Wire Size 22 AWG, Maximum Operating Temperature 176 Degrees F, Minimum Operating Temperature -13 Degrees F, IP Rating IP65, IP67, Standards CSA Certified, IEC, UL Listed
