  11. Cordset, 16.4 ft., Black, 250VAC/300VDC

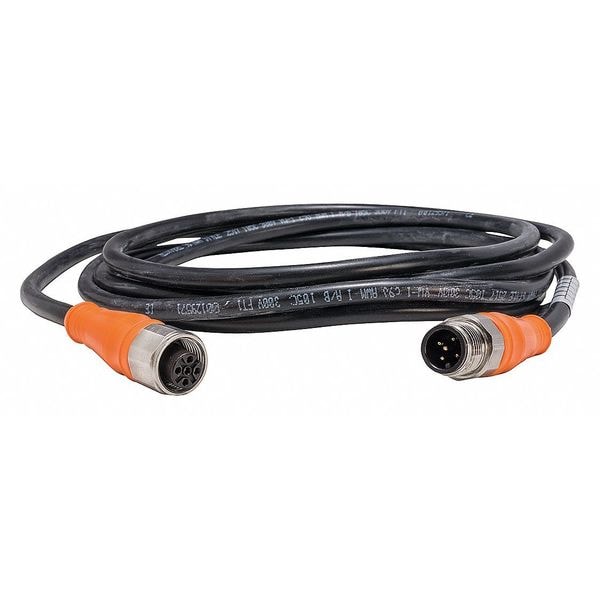

Telemecanique Sensors Cordset, 16.4 ft., Black, 250VAC/300VDC XZCRA151164D5 - main

Cordset, 16.4 ft., Black, 250VAC/300VDC

  • Mfr # XZCRA151164D5

  • Zoro # G7016152

product price: $117.99
/ea
Free Shipping & Returns

Key Features

End 1 Number of Pins
5
End 2 Number of Pins
5
Cable Length
5 m
Wire Size
22 AWG
IP Rating
IP69K
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XZCRA151164D5
Zoro #
G7016152
UPC #
-
Country of Origin
Poland

Dimensions

Cable Length
5 m
Wire Size
22 AWG
Cable Outer Diameter
5.7 mm

Details

Item
Cordset
End 1 Number of Pins
5
End 2 Number of Pins
5
IP Rating
IP69K
End 1 Connection Type
M12
Max. Amps
4 A
Max. Voltage
250VAC/300VDC
Features
Good Resistance to Severe Mechanical Stress; Friction; Abrasion; Torsion; Hot and Cold Oils; Greases and Lubricants; Halogen Free
End 1 Thread
M12
End 1 Keyway
Single
End 2 Gender and Plug End
Female Straight
End 1 Gender and Plug End
Male Straight
Standards
CSA Certified, IEC, UL Listed
End 2 Keyway
Single
End 2 Thread
M12
Number of Conductors
5
Temp. Range
-25 Degrees to 85 Degrees C
End 2 Connection Type
M12
For Use With
Food And Beverages Environment
End 2 Number of Keyways
1
End 1 Number of Keyways
1
End 2 Mounting Orientation
Straight
Cable Jacket Color
Black
Maximum Operating Temperature
185 Degrees F
End 2 Gender
Female
Cable Jacket Material
PUR
Minimum Operating Temperature
-13 Degrees F
Number of Wires
5
End 1 Gender
Male
End 1 Mounting Orientation
Straight
Cable Composition
5 x 0.34 mm²
Ambient Air Temperature For Operation
-25-85°C static
Insulation Resistance
>= 1000 MOhm
Collar Material
metal
Accessory / Separate Part Category
cabling accessory
Line Rated Current
4A
Maximum Resistance Across Terminals
5000 mOhm
Jumper Cable End 1
M12 male 5 pins straight screw-on and clip-on
Jumper Cable End 2
M12 female 5 pins straight screw-on and clip-on
[Ue] Rated Operational Voltage
250 V AC || 300 V DC
Accessory / Separate Part Type
jumper cable
Product Type
Double Ended

Description

Cordset, End 1 Gender Male, End 1 Thread M12, End 1 Number of Pins 5, End 1 Mounting Orientation Straight, End 1 Connection Type M12, End 2 Gender Female, End 2 Thread M12, End 2 Mounting Orientation Straight, End 2 Number of Pins 5, End 2 Connection Type M12, Cable Length 5 m, Cable Jacket Color Black, Cable Jacket Material PUR, Max. Amps 4 A, Wire Size 22 AWG, Maximum Operating Temperature 185 Degrees F, Minimum Operating Temperature -13 Degrees F, IP Rating IP69K
