  6. Cordset, 16.4 ft., Yellow, 250VAC/300VDC

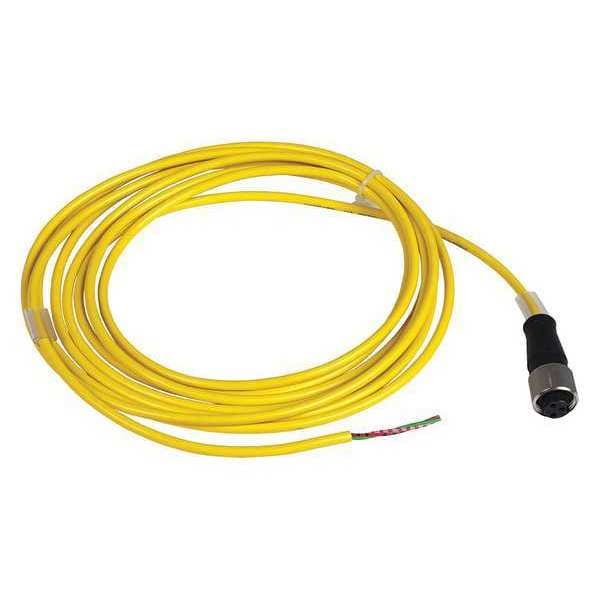

Telemecanique Sensors Cordset, 16.4 ft., Yellow, 250VAC/300VDC XZCPV1670L5 - main

Cordset, 16.4 ft., Yellow, 250VAC/300VDC

  • Mfr # XZCPV1670L5

  • Zoro # G6443981

product price:  $69.45
/ea

Key Features

Product Type
Single Ended
End 1 Number of Pins
3
Wire Size
18 AWG
Cable Length
16.4 ft
Cable Jacket Material
PVC
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
XZCPV1670L5
Zoro #
G6443981
UPC #
-
Country of Origin
Germany

Dimensions

Wire Size
18 AWG
Cable Length
16.4 ft
Cable Outer Diameter
5.2 mm

Details

Item
Cordset
Product Type
Single Ended
End 1 Number of Pins
3
Cable Jacket Material
PVC
Cable Jacket Color
Yellow
IP Rating
IP65, IP67
Max. Amps
7 A
Maximum Operating Temperature
176 Degrees F
Temp. Range
-25 Degrees to 80 Degrees C
Standards
CSA Certified, IEC, UL Listed
Features
Good Resistance to Moderate Mechanical Stress, Chemical Products and Humid Environments, Easy Cable Stripping
Max. Voltage
250 V AC, 300 V DC
End 2 Gender and Plug End
Bare Wire
End 1 Keyway
Single
Number of Conductors
3
End 1 Gender and Plug End
Female Straight
End 1 Connection Type
7/8 in
End 1 Thread
7/8"-16
End 2 Connection Type
Bare Wire
End 1 Number of Keyways
1
End 1 Mounting Orientation
Straight
Minimum Operating Temperature
-13 Degrees F
End 1 Gender
Female
Number of Wires
3
Accessory / Separate Part Type
pre-wired connectors
Series Name
general purpose
Product Certifications
cULus
Contact Resistance
5000µOhm
Cable Composition
3 x 0.75 mm²
Electrical Connection
straight female connector 7/8", 3 pins
Ambient Air Temperature For Operation
-25-80°C static
Ambient Air Temperature For Storage
-25-80°C
Cable Connector Fixing
screw-on
[Ue] Rated Operational Voltage
250 V AC || 300 V DC
Minimum Insulating Resistance
1 GΩ
Accessory / Separate Part Category
cabling accessory
Line Rated Current
7A
Collar Material
metal
Status Led
without

Description

Cordset, End 1 Gender Female, End 1 Thread 7/8 In.-16, End 1 Number of Pins 3, End 1 Mounting Orientation Straight, End 1 Connection Type 7/8 in, End 2 Gender Not Applicable, End 2 Thread Not Applicable, End 2 Connection Type Bare Wire, Cable Length 5 m, Cable Jacket Color Yellow, Cable Jacket Material PVC, Max. Amps 7 A, Wire Size 18 AWG, Maximum Operating Temperature 176 Degrees F, Minimum Operating Temperature -13 Degrees F, IP Rating IP65, IP67, Standards CSA Certified, IEC, UL Listed
