  11. Cordset, 30VAC/36VDC, PVC, Gray

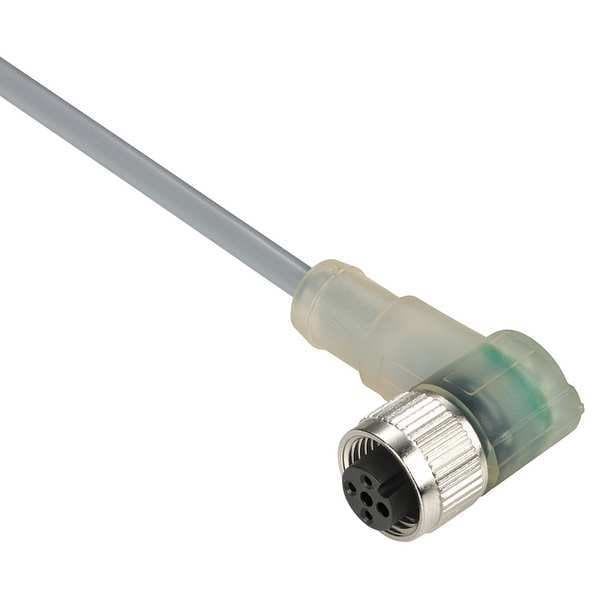

Telemecanique Sensors Cordset, 30VAC/36VDC, PVC, Gray XZCPV1340L2 - main

Cordset, 30VAC/36VDC, PVC, Gray

  • Mfr # XZCPV1340L2

  • Zoro # G6226936

product price: $22.49
/ea

Key Features

End 1 Number of Pins
3
Cable Length
6.56 ft
Wire Size
22 AWG
IP Rating
IP65, IP67
Features
LED Display
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XZCPV1340L2
Zoro #
G6226936
UPC #
785901948940
Country of Origin
Poland

Dimensions

Cable Length
6.56 ft
Wire Size
22 AWG
Cable Outer Diameter
4.6 mm

Details

Item
Cordset
End 1 Number of Pins
3
IP Rating
IP65, IP67
Features
LED Display
End 1 Thread
M12
Standards
cULus
NEMA Rating
6P
Number of Conductors
3
End 1 Gender and Plug End
Female Right Angle
End 2 Connection Type
Bare Wire
End 1 Connection Type
M12
Max. Voltage
30VAC/36VDC
For Use With
PNP LEDs
End 2 Gender and Plug End
Bare Wire
End 1 Keyway
Single
End 2 Keyway
Single
Temp. Range
-13 Degrees to 176 Degrees F
Max. Amps
3 A
Color
Blue, Brown, Black
End 2 Number of Keyways
1
End 1 Number of Keyways
1
Cable Jacket Color
Gray
End 1 Gender
Female
Number of Wires
3
Minimum Operating Temperature
-13 Degrees F
Maximum Operating Temperature
176 Degrees F
Cable Jacket Material
PVC
End 1 Mounting Orientation
Right Angle
Contact Resistance
5000µOhm
Status Led
2 PNP LEDs
Cable Connector Fixing
screw-on
Product Certifications
cULus
Accessory / Separate Part Type
pre-wired connectors
Cable Composition
3 x 0.25 mm²
Accessory / Separate Part Category
cabling accessory
Minimum Insulating Resistance
1 GΩ
Ambient Air Temperature For Storage
-25-80°C
[Ue] Rated Operational Voltage
30 V AC || 36 V DC
Ambient Air Temperature For Operation
-25-80°C static
Electrical Connection
elbowed female connector M12, 3 pins
Series Name
general purpose
Line Rated Current
3A
Collar Material
metal
Product Type
Single Ended

Description

Cordset, End 1 Gender Female, End 1 Thread M12, End 1 Number of Pins 3, End 1 Mounting Orientation Right Angle, End 1 Connection Type M12, End 2 Gender Not Applicable, End 2 Thread Not Applicable, End 2 Connection Type Bare Wire, Cable Length 2 m, Cable Jacket Color Gray, Cable Jacket Material PVC, Max. Amps 3 A, Wire Size 22 AWG, Maximum Operating Temperature 176 Degrees F, Minimum Operating Temperature -13 Degrees F, IP Rating IP67, Standards cULus, NEMA Rating 6P, End 1 Number of Keyways 1
