  11. Cordset, 6.56 ft., Gray, 250VAC/300VDC

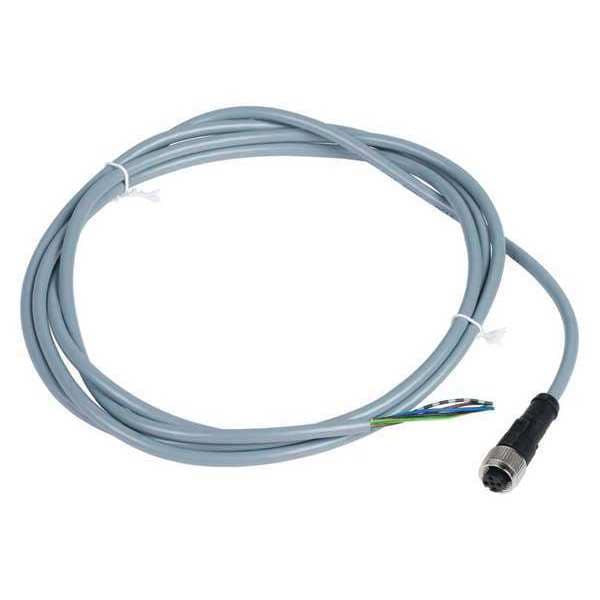

Telemecanique Sensors Cordset, 6.56 ft., Gray, 250VAC/300VDC XZCPV1164L2 - main

Cordset, 6.56 ft., Gray, 250VAC/300VDC

  • Mfr # XZCPV1164L2

  • Zoro # G9726053

product price: $27.35
/ea

Key Features

End 1 Number of Pins
5
Cable Length
2 m
Wire Size
18 AWG
IP Rating
IP65, IP67
Max. Voltage
60VAC/75VDC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XZCPV1164L2
Zoro #
G9726053
UPC #
785901461197
Country of Origin
Poland

Dimensions

Cable Length
2 m
Wire Size
18 AWG
Cable Outer Diameter
4.6 mm

Details

Item
Cordset
End 1 Number of Pins
5
IP Rating
IP65, IP67
Max. Voltage
60VAC/75VDC
Max. Amps
3 A
End 1 Thread
M12
End 1 Gender and Plug End
Female Straight
Temp. Range
-25 Degrees to 80 Degrees C
End 2 Connection Type
Bare Wire
End 2 Gender and Plug End
Bare Wire
End 1 Connection Type
M12
Features
Good Resistance to Severe Mechanical Stress; Friction; Abrasion; Torsion; Hot and Cold Oils; Greases and Lubricants; Halogen Free; Mercury Free
Standards
CSA Certified, IEC, UL Listed
Number of Conductors
5
End 1 Keyway
Single
End 1 Number of Keyways
1
Maximum Operating Temperature
176 Degrees F
Cable Jacket Material
PVC
Number of Wires
5
End 1 Gender
Female
Minimum Operating Temperature
-13 Degrees F
End 1 Mounting Orientation
Straight
Cable Jacket Color
Gray
Cable Composition
5 x 0.25 mm²
Accessory / Separate Part Category
cabling accessory
Collar Material
metal
Product Certifications
cULus
[Ue] Rated Operational Voltage
60 V AC || 75 V DC
Ambient Air Temperature For Storage
-25-80°C
Series Name
general purpose
Line Rated Current
3A
Status Led
without
Minimum Insulating Resistance
1 GΩ
Cable Connector Fixing
screw-on
Contact Resistance
5000µOhm
Ambient Air Temperature For Operation
-25-80°C static
Electrical Connection
straight female connector M12, 5 pins
Accessory / Separate Part Type
pre-wired connectors
Product Type
Single Ended

Description

Cordset, End 1 Gender Female, End 1 Thread M12, End 1 Number of Pins 5, End 1 Mounting Orientation Straight, End 1 Connection Type M12, End 2 Gender Not Applicable, End 2 Thread Not Applicable, End 2 Connection Type Bare Wire, Cable Length 2 m, Cable Jacket Color Gray, Cable Jacket Material PVC, Max. Amps 3 A, Wire Size 18 AWG, Maximum Operating Temperature 176 Degrees F, Minimum Operating Temperature -13 Degrees F, IP Rating IP65, IP67, Standards CSA Certified, IEC, UL Listed
