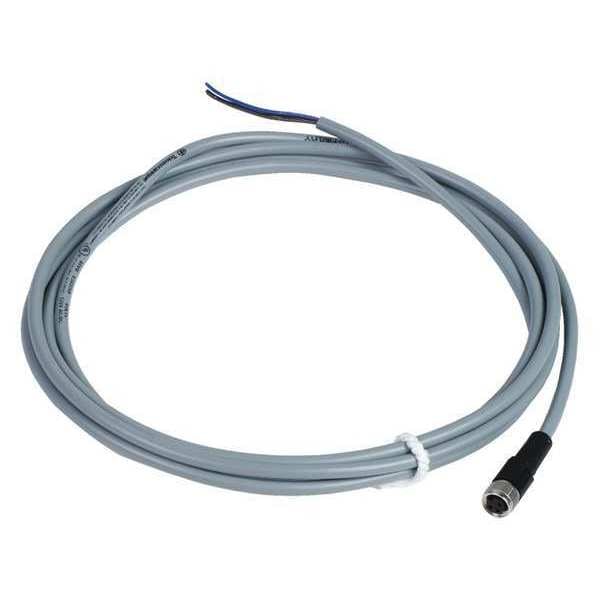

Telemecanique Sensors Cordset, PVC, Shielded XZCPV0566L5 - main

Cordset, PVC, Shielded

  • Mfr # XZCPV0566L5

  • Zoro # G6708606

product price: $19.75
/ea

Key Features

End 1 Number of Pins
3
Cable Length
16.4 ft
IP Rating
IP65, IP67
Number of Conductors
3
Standards
cULus
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XZCPV0566L5
Zoro #
G6708606
UPC #
785901222194
Country of Origin
Czechia

Dimensions

Cable Length
16.4 ft
Cable Outer Diameter
4.6 mm

Details

Item
Cordset
End 1 Number of Pins
3
IP Rating
IP65, IP67
Number of Conductors
3
Standards
cULus
Temp. Range
-25 Degrees to 80 Degrees C
End 1 Thread
M8
End 1 Gender and Plug End
Female Straight
End 1 Connection Type
M8
End 1 Keyway
Single
Max. Voltage
60VAC/75VDC
End 2 Keyway
Single
End 2 Connection Type
Bare Wire
End 2 Gender and Plug End
Bare Wire
Max. Amps
3 A
Features
Straight; Mercury Free
End 2 Number of Keyways
1
End 1 Number of Keyways
1
Maximum Operating Temperature
176 Degrees F
Cable Jacket Color
Gray
Number of Wires
3
Minimum Operating Temperature
-13 Degrees F
End 1 Mounting Orientation
Straight
Cable Jacket Material
PVC
End 1 Gender
Female
Line Rated Current
3A
Electrical Connection
straight female connector M8, 3 pins
Cable Composition
3 x 0.25 mm²
Product Certifications
cULus
Series Name
general purpose
Collar Material
metal
Cable Connector Fixing
screw-on
Minimum Insulating Resistance
1 GΩ
[Ue] Rated Operational Voltage
60 V AC || 75 V DC
Accessory / Separate Part Type
pre-wired connectors
Contact Resistance
5000µOhm
Accessory / Separate Part Category
cabling accessory
Status Led
without
Ambient Air Temperature For Operation
-25-80°C static
Ambient Air Temperature For Storage
-25-80°C
Product Type
Single Ended

Description

Cordset, End 1 Gender Female, End 1 Thread M8, End 1 Number of Pins 3, End 1 Mounting Orientation Straight, End 1 Connection Type M8, End 2 Gender Not Applicable, End 2 Thread Not Applicable, End 2 Connection Type Bare Wire, Cable Length 5 m, Cable Jacket Color Gray, Cable Jacket Material PVC, Max. Amps 3 A, Maximum Operating Temperature 176 Degrees F, Minimum Operating Temperature -13 Degrees F, IP Rating IP65, IP67, Standards cULus, End 1 Number of Keyways 1, End 2 Number of Keyways 1
