  6. Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Brass, M12, 3 Wires, Shielded

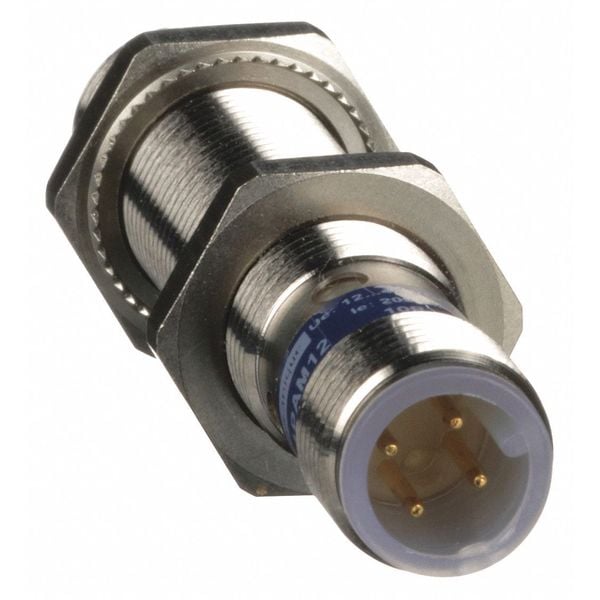

Telemecanique Sensors Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Brass, M12, 3 Wires, Shielded XS612B1PAM12 - main

Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Brass, M12, 3 Wires, Shielded

  • Mfr # XS612B1PAM12

  • Zoro # G0304202

product price:  $82.49
/ea
Free Shipping & Returns

Key Features

Style
Cylindrical, Inductive
Measurement Range
2.5 to 4 mm
Overall Diameter
12 mm
Proximity Sensing Method
Inductive
Body Material
Brass
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
XS612B1PAM12
Zoro #
G0304202
UPC #
785901505273
Country of Origin
Multiple

Dimensions

Overall Diameter
12 mm
Length
62 mm
Overall Height
62 mm

Details

Item
Proximity Sensor
Style
Cylindrical, Inductive
Measurement Range
2.5 to 4 mm
Proximity Sensing Method
Inductive
Body Material
Brass
Proximity Sensor Power Requirement
12 to 48V DC
Electrical Connection
M12
Output Circuit Type
PNP
Output Circuit Number of Wires
3
Sensing Face Shielding
Shielded
Sensing Distance - Maximum
4 mm
AC Voltage Rating
Not Rated
DC Voltage Rating
12-48V DC
Output Circuit Contact Form
NO
Standards
CE, CSA, E2, RoHS, UL Listed
Proximity Sensor Electrical Connection
4 Pin M12 Connector
Proximity Sensor Operating Frequency
2,500 Hz
IP Rating
IP67, IP69K
Max. Current Load
200mA
Operating Temp. Range
-13 Degrees to 158 Degrees F
Description/Special Features
Extended Range
Body Type
fixed
Differential Travel
1...15% of Sr
Switching Capacity
<= 200 mA DC overload and short-circuit protection
Storage Temp. Range
-40-85 °C
Maximum Voltage Drop
<2 V closed)
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Maximum Delay Response
0.2 ms
Application
mobile equipment; general purpose
Vibration Resistance
25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Supply Voltage Limits
10-58 V DC
Maximum Delay Recovery
0.2 ms
Series
XS6
Maximum Delay First Up
10 ms
Switching Frequency
2,500 Hz
Operating Temperature - Maximum
158 Degrees F
Body Finish
Nickel Plated
Load Current - Maximum
200 mA
Features
Extended Range
NEMA Enclosure Rating
4X
Sensing Distance - Minimum
3 mm
Electrical Installation Type
Direct Connector
Number of Pins
4
Operating Temperature - Minimum
-13 Degrees F
Includes Indicator Lights
Indicator Lights Included

Description

Inductive Cylindrical Proximity Sensor, Inductive, 12 mm, Proximity Sensor Power Requirement 12 to 48V DC, Shielded, Proximity Sensor Operating Frequency 2,500 Hz, Proximity Sensor Output Circuit Type 3 Wire PNP, Max. Detecting Distance 4 mm, Proximity Sensor Electrical Connection 4 Pin M12 Connector, Output Mode NO, NEMA Rating 4X, IP Rating IP67, IP69K, Case Material Nickel Plated Brass, Length 62 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 200mA
