  11. Cylindrical, Inductive Proximity Sensor, 12 mm Dia., PPS, M12, 3 Wires, Shielded

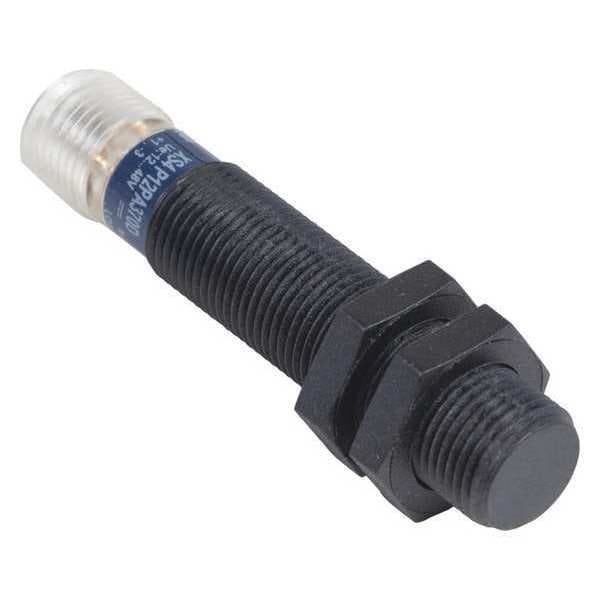

Telemecanique Sensors Cylindrical, Inductive Proximity Sensor, 12 mm Dia., PPS, M12, 3 Wires, Shielded XS4P12PA370D - main

Cylindrical, Inductive Proximity Sensor, 12 mm Dia., PPS, M12, 3 Wires, Shielded

  • Mfr # XS4P12PA370D

  • Zoro # G6987784

product price: $96.79
/ea
Free Shipping & Returns

Key Features

Measurement Range
0 to 3.2 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 24V DC
Length
42 mm
Depth
18 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XS4P12PA370D
Zoro #
G6987784
UPC #
785901169499
Country of Origin
France

Dimensions

Length
42 mm
Depth
18 mm
Overall Diameter
12 mm
Overall Height
61 mm

Details

Item
Proximity Sensor
Measurement Range
0 to 3.2 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 24V DC
Proximity Sensor Electrical Connection
4 Pin M12 Connector
Proximity Sensor Operating Frequency
2,500 Hz
Description/Special Features
Overload And Short-Circuit Protection, Reverse Polarity, Yellow LED Output Indication
Max. Current Load
200mA
Standards
CCC, CE, CSA, RoHS, UL Listed
IP Rating
IP65, IP67
Operating Temp. Range
-13 Degrees to 158 Degrees F
Electrical Connection
M12
Storage Temp. Range
-40-85 °C
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Body Type
fixed
Maximum Delay First Up
10 ms
Maximum Delay Recovery
0.1 ms
Series
XS4
Vibration Resistance
25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Maximum Delay Response
0.1 ms
Switching Capacity
<= 200 mA DC overload and short-circuit protection
Maximum Voltage Drop
<2 V closed)
Supply Voltage Limits
10-58 V DC
Differential Travel
1...15% of Sr
Application
general purpose
Body Material
PPS
Electrical Installation Type
Direct Connector
Number of Pins
4
Output Circuit Number of Wires
3
Load Current - Maximum
200 mA
Sensing Face Shielding
Shielded
Body Finish
Nickel Plated
Sensing Distance - Maximum
4 mm
Operating Temperature - Maximum
158 Degrees F
Switching Frequency
5,000 Hz
Output Circuit Type
PNP
Style
Cylindrical, Inductive
Operating Temperature - Minimum
-13 Degrees F
Includes Indicator Lights
Indicator Lights Included
AC Voltage Rating
Not Rated
DC Voltage Rating
12-48V DC
Output Circuit Contact Form
NO

Description

Inductive Cylindrical Proximity Sensor, Inductive, 12 mm, Proximity Sensor Power Requirement 12 to 24V DC, Shielded, Proximity Sensor Operating Frequency 2,500 Hz, Proximity Sensor Output Circuit Type 3 Wire PNP, Max. Detecting Distance 4 mm, Proximity Sensor Electrical Connection 4 Pin M12 Connector, Output Mode NO, IP Rating IP65, IP67, Case Material PPS, Length 42 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 200mA
