  6. Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Stainless Steel, M12, 3 Wires, Shielded

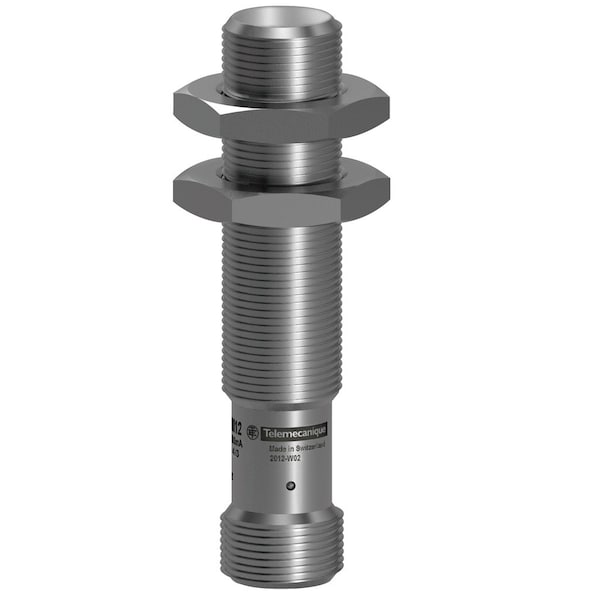

Telemecanique Sensors Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Stainless Steel, M12, 3 Wires, Shielded XS912RWPAM12 - main
Shop TELEMECANIQUE SENSORS

Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Stainless Steel, M12, 3 Wires, Shielded

  • Mfr # XS912RWPAM12

  • Zoro # G1966419

product price:  $167.99
/ea
Free Shipping & Returns

Key Features

Measurement Range
4 to 8 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 24V DC
Length
60 mm
Depth
12 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XS912RWPAM12
Zoro #
G1966419
UPC #
-
Country of Origin
Switzerland

Dimensions

Length
60 mm
Depth
12 mm
Overall Height
60 mm
Overall Diameter
12 mm

Details

Item
Proximity Sensor
Measurement Range
4 to 8 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 24V DC
Proximity Sensor Electrical Connection
Male Connector M12, 4 Pins
Proximity Sensor Operating Frequency
Less than Or Equal to 15 Hz
Operating Temp. Range
-25 to 70 Degrees C
Max. Current Load
10 mA
Description/Special Features
Frontal Detection Face; Output State 1 LED Yellow
Electrical Connection
M12
IP Rating
IP68, IP69K
Standards
CE, cUL
Features
Overload Protection, Reverse Polarity Protection, Short Circuit Protection
Application
welding machine
Shock Resistance
30 gn 11 msIEC 60068-2-27
Maximum Voltage Drop
<2 V closed)
Maximum Delay Recovery
0.015 ms
Maximum Delay First Up
80 ms
Switching Capacity
<= 200 mA overload and short-circuit protection
Series
XS9
Supply Voltage Limits
10-30 V DC
Vibration Resistance
25 gn +/- 1 mm 10-55 Hz)IEC 60068-2-6
Storage Temp. Range
-25-70 °C
Maximum Delay Response
0.0001 ms
Body Type
single piece body
Differential Travel
1...15 % of Sr
Operating Temperature - Minimum
-13 Degrees F
Style
Cylindrical, Inductive
Body Material
Stainless Steel
Output Circuit Type
PNP
Electrical Installation Type
Direct Connector
DC Voltage Rating
12-24V DC
Sensing Distance - Minimum
4 mm
Number of Pins
4
Operating Temperature - Maximum
158 Degrees F
Output Circuit Number of Wires
3
Sensing Distance - Maximum
8 mm
Includes Indicator Lights
Indicator Lights Included
AC Voltage Rating
Not Rated
Output Circuit Contact Form
NO
Switching Frequency
15 Hz
Sensing Face Shielding
Shielded
Body Stainless Steel Grade
303

Description

Inductive Cylindrical Proximity Sensor, IP Rating IP68, IP69K, Standards CE, cUL
