  6. Cylindrical, Inductive Proximity Sensor, 13 mm Dia., Stainless Steel, 2 m, Bare Wire, 3 Wires, Shielded

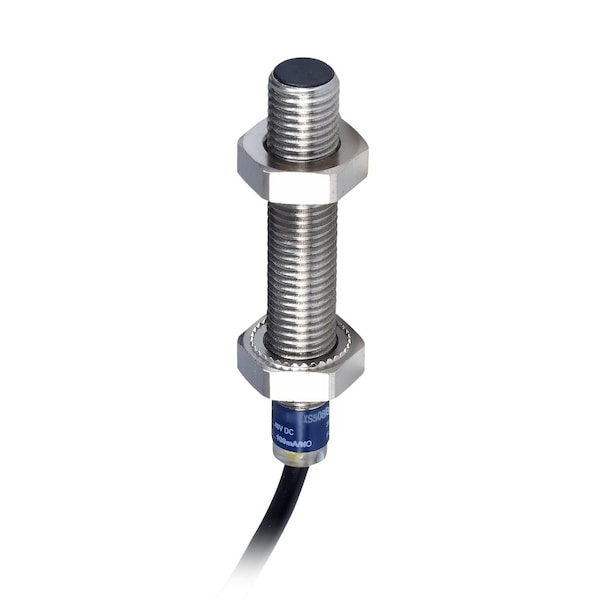

Telemecanique Sensors Cylindrical, Inductive Proximity Sensor, 13 mm Dia., Stainless Steel, 2 m, Bare Wire, 3 Wires, Shielded XS508B1PBL2 - main
Shop TELEMECANIQUE SENSORS

Cylindrical, Inductive Proximity Sensor, 13 mm Dia., Stainless Steel, 2 m, Bare Wire, 3 Wires, Shielded

  • Mfr # XS508B1PBL2

  • Zoro # G0860091

product price:  $82.19
/ea
Free Shipping & Returns

Key Features

Measurement Range
0 to 1.2 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 24V DC
Length
33 mm
Proximity Sensor Electrical Connection
Cable Connection
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
XS508B1PBL2
Zoro #
G0860091
UPC #
785901999966
Country of Origin
France

Dimensions

Length
33 mm
Overall Height
33 mm
Overall Diameter
13 mm
Cable Length
2 m

Details

Item
Proximity Sensor
Measurement Range
0 to 1.2 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 24V DC
Proximity Sensor Electrical Connection
Cable Connection
Proximity Sensor Operating Frequency
Less than Or Equal to 5000 Hz
Max. Current Load
10 mA
Operating Temp. Range
-25 to 70 Degrees C
Electrical Connection
Bare Wire
Standards
CE, CSA, UL Listed
Description/Special Features
Frontal Detection Face; Output State 1 LED Yellow
IP Rating
IP67
Application
general purpose
Features
Overload Protection, Reverse Polarity Protection, Short Circuit Protection
Supply Voltage Limits
10-36 V DC
Switching Capacity
<= 200 mA DC overload and short-circuit protection
Maximum Voltage Drop
<2 V closed)
Body Type
fixed
Storage Temp. Range
-40-85 °C
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Vibration Resistance
25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Maximum Delay Response
0.1 ms
Maximum Delay Recovery
0.1 ms
Series
XS5
Differential Travel
1...15% of Sr
Maximum Delay First Up
10 ms
AC Voltage Rating
Not Rated
Output Circuit Number of Wires
3
Operating Temperature - Minimum
-13 Degrees F
Style
Cylindrical, Inductive
Sensing Distance - Maximum
2 mm
Operating Temperature - Maximum
158 Degrees F
Body Stainless Steel Grade
303
Body Material
Stainless Steel
Output Circuit Type
PNP
Includes Indicator Lights
Indicator Lights Included
Output Circuit Contact Form
NC
DC Voltage Rating
12-24V DC
Switching Frequency
5,000 Hz
Sensing Face Shielding
Shielded
Electrical Installation Type
Prewired Cable

Description

Inductive Cylindrical Proximity Sensor, IP Rating IP67, Standards CE, CSA, UL Listed
