  11. Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Brass, 2 m, Bare Wire, 3 Wires, Unshielded

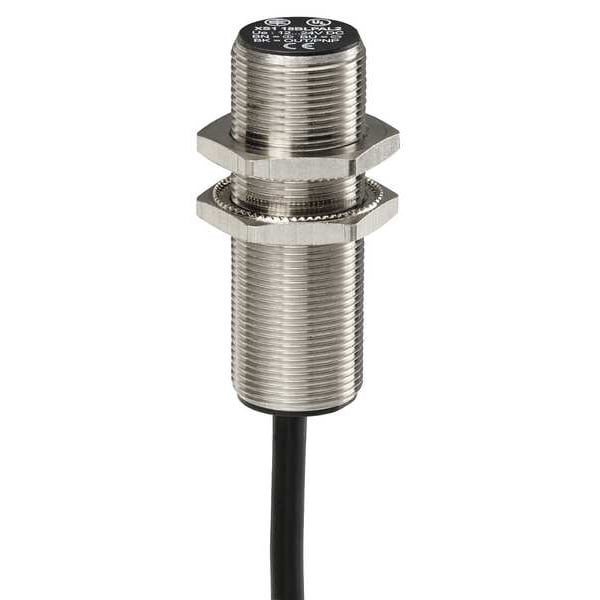

Telemecanique Sensors Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Brass, 2 m, Bare Wire, 3 Wires, Unshielded XS218BLPAL2 - main

Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Brass, 2 m, Bare Wire, 3 Wires, Unshielded

  • Mfr # XS218BLPAL2

  • Zoro # G1454896

product price: $45.89
/ea

Key Features

Measurement Range
0 to 6.4 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 24V DC
Proximity Sensor Output Circuit Type
3 Wire PNP
Output Mode
NO
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XS218BLPAL2
Zoro #
G1454896
UPC #
785901467533
Country of Origin
Indonesia

Dimensions

Length
41 mm
Proximity Sensor Diameter
18 mm
Overall Height
53 mm
Cable Length
2 m
Overall Diameter
18 mm

Details

Item
Proximity Sensor
Measurement Range
0 to 6.4 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 24V DC
Proximity Sensor Output Circuit Type
3 Wire PNP
Output Mode
NO
Proximity Sensor Electrical Connection
2m Cable
Proximity Sensor Operating Frequency
250 Hz
Max. Current Load
100mA
Standards
CE, CSA, RoHS, UL Listed
Operating Temp. Range
-13 Degrees to 158 Degrees F
Description/Special Features
Overload And Short-Circuit Protection, Reverse Polarity, Yellow LED Output Indication
IP Rating
IP67
Electrical Connection
Bare Wire
Maximum Voltage Drop
<2 V closed)
Maximum Delay First Up
15 ms
Vibration Resistance
25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Series
XS2
Application
general purpose
Maximum Delay Recovery
1 ms
Switching Capacity
<= 200 mA overload and short-circuit protection
Body Type
fixed
Maximum Delay Response
0.1 ms
Supply Voltage Limits
10-36 V DC
Differential Travel
1...15% of Sr
Storage Temp. Range
-40-85 °C
Switching Frequency
500 Hz
Operating Temperature - Minimum
-13 Degrees F
Output Circuit Contact Form
NO
DC Voltage Rating
12-24V DC
Electrical Installation Type
Prewired Cable
Body Material
Brass
Sensing Distance - Maximum
8 mm
Output Circuit Number of Wires
3
Style
Cylindrical, Inductive
NEMA Enclosure Rating
4X
AC Voltage Rating
Not Rated
Sensing Face Shielding
Unshielded
Includes Indicator Lights
Indicator Lights Included
Body Finish
Nickel Plated
Load Current - Maximum
200 mA
Operating Temperature - Maximum
158 Degrees F
Output Circuit Type
PNP

Description

Inductive Cylindrical Proximity Sensor, Inductive, 18 mm, Proximity Sensor Power Requirement 12 to 24V DC, Unshielded, Proximity Sensor Operating Frequency 250 Hz, Proximity Sensor Output Circuit Type 3 Wire PNP, Max. Detecting Distance 8 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NO, NEMA Rating 4X, IP Rating IP67, Case Material Nickel Plated Brass, Length 41 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 100mA
