Shop TELEMECANIQUE SENSORS

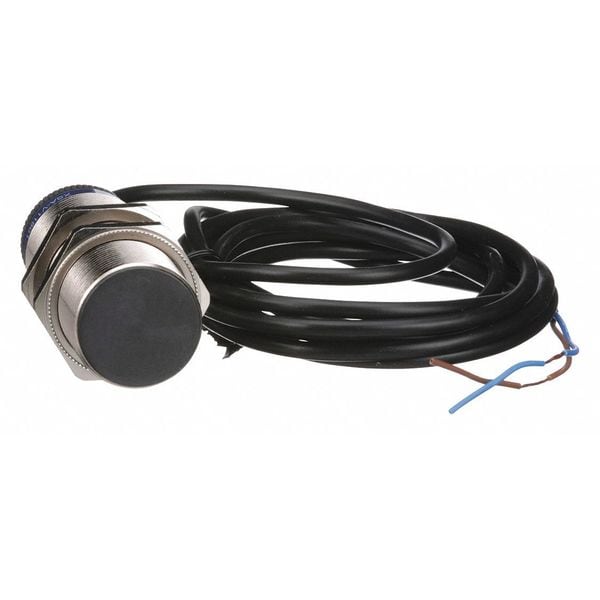

Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Brass, 2 m, Bare Wire, 2 Wires, Unshielded

  • Mfr # XSAV11801
  • Zoro # G0478068
product price:
$
231.99
/ea
Free Shipping & Returns

Key Features

Style
Cylindrical, Inductive
Measurement Range
8 to 15 mm
Overall Diameter
30 mm
Proximity Sensing Method
Inductive
Body Material
Brass
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
XSAV11801
Zoro #
G0478068
UPC #
785901528036
Country of Origin
France
Item
Proximity Sensor
Style
Cylindrical, Inductive
Measurement Range
8 to 15 mm
Proximity Sensing Method
Inductive
Body Material
Brass
Proximity Sensor Power Requirement
24 to 240 V AC; 24 to 210 V DC
Electrical Connection
Bare Wire
Output Circuit Type
AC/DC-Type
Output Circuit Number of Wires
2
Sensing Face Shielding
Unshielded
Sensing Distance - Maximum
15 mm
AC Voltage Rating
24V AC to 240V AC
DC Voltage Rating
24V DC to 210V DC
Output Circuit Contact Form
NC
Standards
CCC, CE, CSA, RoHS, UL Listed
Proximity Sensor Electrical Connection
2m Cable
Proximity Sensor Operating Frequency
100 Hz
Description/Special Features
Frontal Detection Face; Output State 1 LED Red
Operating Temp. Range
-13 Degrees to 158 Degrees F
IP Rating
IP67
Max. Current Load
1.5mA
Series
XSA
Body Type
fixed
Switching Capacity
5...200 mA DC || 5...350 mA AC
Storage Temp. Range
-40-85 °C
Application
rotation monitoring
Differential Travel
3...15% of Fr
Maximum Voltage Drop
<5.7 V closed)
Supply Voltage Limits
20-264 V AC/DC
Electrical Installation Type
Prewired Cable
Operating Temperature - Maximum
158 Degrees F
Body Finish
Nickel Plated
Includes Indicator Lights
Indicator Lights Included
Load Current - Maximum
350 mA
Sensing Distance - Minimum
8 mm
Operating Temperature - Minimum
-13 Degrees F
Switching Frequency
100 Hz
Sensing Method
Inductive

Description

Inductive Cylindrical Proximity Sensor, Inductive, 30 mm, Proximity Sensor Power Requirement 24 to 240 V AC; 24 to 210 V DC, Unshielded, Proximity Sensor Operating Frequency 100 Hz, Proximity Sensor Output Circuit Type 2 Wire, Max. Detecting Distance 81 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NC, IP Rating IP67, Case Material Nickel Plated Brass, Length 81 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 1.5mA
