  6. Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Brass, M12, 3 Wires, Shielded

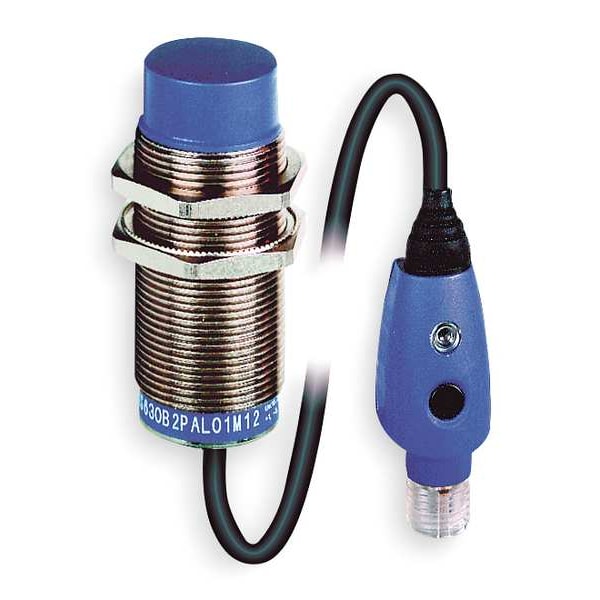

Telemecanique Sensors Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Brass, M12, 3 Wires, Shielded XS530B1NAM12 - main
Shop TELEMECANIQUE SENSORS

Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Brass, M12, 3 Wires, Shielded

  • Mfr # XS530B1NAM12

  • Zoro # G2921615

product price:  $94.39
/ea
Free Shipping & Returns

Key Features

Measurement Range
0 to 8 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 24V DC
Length
41 mm
Proximity Sensor Electrical Connection
4 Pin M12 Connector
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
XS530B1NAM12
Zoro #
G2921615
UPC #
785901627968
Country of Origin
Multiple

Dimensions

Length
41 mm
Overall Diameter
30 mm
Overall Height
55 mm

Details

Item
Proximity Sensor
Measurement Range
0 to 8 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 24V DC
Proximity Sensor Electrical Connection
4 Pin M12 Connector
Proximity Sensor Operating Frequency
1,000 Hz
IP Rating
IP67, IP69K
Description/Special Features
Overload And Short-Circuit Protection, Reverse Polarity, Yellow LED Output Indication
Operating Temp. Range
-13 Degrees to 158 Degrees F
Standards
CE, CSA, RoHS, UL Listed
Max. Current Load
200mA
Electrical Connection
M12
Storage Temp. Range
-40-85 °C
Maximum Delay Response
0.3 ms
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Application
general purpose
Body Type
fixed
Switching Capacity
<= 200 mA DC overload and short-circuit protection
Maximum Delay Recovery
0.7 ms
Maximum Voltage Drop
<2 V closed)
Supply Voltage Limits
10-36 V DC
Differential Travel
1...15% of Sr
Maximum Delay First Up
10 ms
Vibration Resistance
25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Series
XS5
Features
Overload Protection, Reverse Polarity Protection, Short Circuit Protection
NEMA Enclosure Rating
4X
Sensing Distance - Maximum
10 mm
Sensing Face Shielding
Shielded
Body Finish
Nickel Plated
Output Circuit Type
NPN
Output Circuit Contact Form
NO
Includes Indicator Lights
Indicator Lights Included
Operating Temperature - Maximum
158 Degrees F
Load Current - Maximum
200 mA
Number of Pins
4
Body Material
Brass
Switching Frequency
1,000 Hz
AC Voltage Rating
Not Rated
Output Circuit Number of Wires
3
Operating Temperature - Minimum
-13 Degrees F
Electrical Installation Type
Direct Connector
DC Voltage Rating
12-24V DC
Style
Cylindrical, Inductive

Description

Inductive Cylindrical Proximity Sensor, Inductive, 30 mm, Proximity Sensor Power Requirement 12 to 24V DC, Shielded, Proximity Sensor Operating Frequency 1,000 Hz, Proximity Sensor Output Circuit Type 3 Wire NPN, Max. Detecting Distance 10 mm, Proximity Sensor Electrical Connection 4 Pin M12 Connector, Output Mode NO, NEMA Rating 4X, IP Rating IP67, IP69K, Case Material Nickel Plated Brass, Length 41 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 200mA
