  11. Cylindrical, Inductive Proximity Sensor, 30 mm Dia., PPS, M12, 3 Wires, Unshielded

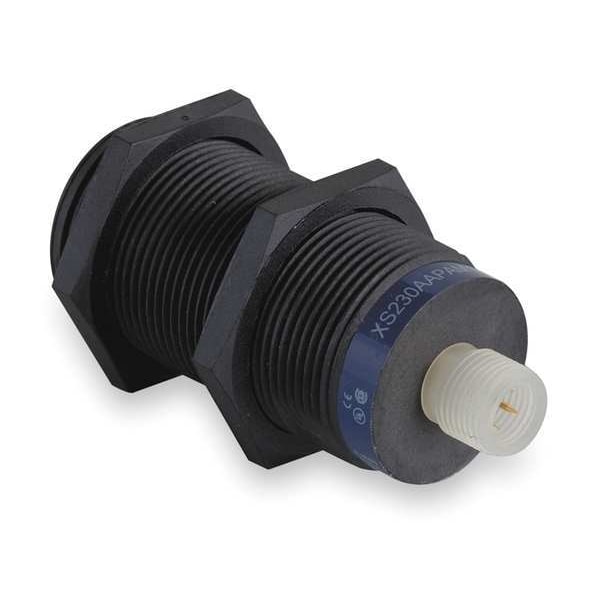

Telemecanique Sensors Cylindrical, Inductive Proximity Sensor, 30 mm Dia., PPS, M12, 3 Wires, Unshielded XS230AAPAM12 - main

Cylindrical, Inductive Proximity Sensor, 30 mm Dia., PPS, M12, 3 Wires, Unshielded

  • Mfr # XS230AAPAM12

  • Zoro # G2952783

product price: $84.85
/ea
Free Shipping & Returns

Key Features

Measurement Range
15 to 40 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 24V DC
Length
41 mm
Proximity Sensor Electrical Connection
4 Pin M12 Connector
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XS230AAPAM12
Zoro #
G2952783
UPC #
785901876847
Country of Origin
France

Dimensions

Length
41 mm
Overall Height
70 mm
Overall Diameter
30 mm

Details

Item
Proximity Sensor
Measurement Range
15 to 40 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 24V DC
Proximity Sensor Electrical Connection
4 Pin M12 Connector
Proximity Sensor Operating Frequency
500 Hz
IP Rating
IP67, IP69K
Standards
CCC, CE, CSA, RoHS, UL Listed
Description/Special Features
Overload And Short-Circuit Protection, Reverse Polarity, Yellow LED Output Indication
Operating Temp. Range
-13 Degrees to 185 Degrees F
Max. Current Load
200mA
Electrical Connection
M12
Differential Travel
1...15% of Sr
Vibration Resistance
25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Switching Capacity
<= 200 mA overload and short-circuit protection
Supply Voltage Limits
10-58 V DC
Body Type
fixed
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Maximum Delay Recovery
1.4 ms
Maximum Delay Response
0.6 ms
Application
food and beverage
Maximum Delay First Up
10 ms
Storage Temp. Range
-40-85 °C
Series
XS2
Maximum Voltage Drop
<2 V closed)
Number of Pins
4
NEMA Enclosure Rating
4X
DC Voltage Rating
12-48V DC
Body Finish
Nickel Plated
Sensing Face Shielding
Unshielded
Sensing Distance - Maximum
40 mm
AC Voltage Rating
Not Rated
Style
Cylindrical, Inductive
Includes Indicator Lights
Indicator Lights Included
Electrical Installation Type
Direct Connector
Body Material
PPS
Output Circuit Number of Wires
3
Load Current - Maximum
200 mA
Switching Frequency
500 Hz
Operating Temperature - Minimum
-13 Degrees F
Sensing Distance - Minimum
15 mm
Output Circuit Type
PNP
Output Circuit Contact Form
NO
Operating Temperature - Maximum
185 Degrees F

Description

Inductive Cylindrical Proximity Sensor, Inductive, 30 mm, Proximity Sensor Power Requirement 12 to 24V DC, Unshielded, Proximity Sensor Operating Frequency 500 Hz, Proximity Sensor Output Circuit Type 3 Wire PNP, Max. Detecting Distance 22 mm, Proximity Sensor Electrical Connection 4 Pin M12 Connector, Output Mode NO, NEMA Rating 4X, IP Rating IP67, IP69K, Case Material Plastic, Length 41 mm, Operating Temp. Range -13 Degrees to 185 Degrees F, Max. Current Load 200mA
