  11. Cylindrical, Inductive Proximity Sensor, 36 mm Dia., Brass, M12, 3 Wires, Shielded

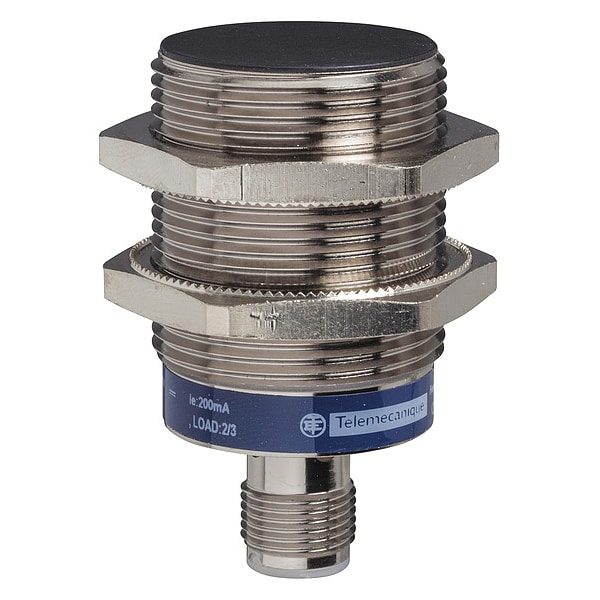

Telemecanique Sensors Cylindrical, Inductive Proximity Sensor, 36 mm Dia., Brass, M12, 3 Wires, Shielded XS130B3PAM12 - main

Cylindrical, Inductive Proximity Sensor, 36 mm Dia., Brass, M12, 3 Wires, Shielded

  • Mfr # XS130B3PAM12

  • Zoro # G0839539

product price: $84.35
/ea
Free Shipping & Returns

Key Features

Measurement Range
0 to 12 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 24V DC
Proximity Sensor Output Circuit Type
3-Wire DC PNP
Length
55 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XS130B3PAM12
Zoro #
G0839539
UPC #
785901591771
Country of Origin
Multiple

Dimensions

Length
55 mm
Overall Height
55 mm
Overall Diameter
36 mm

Details

Item
Proximity Sensor
Measurement Range
0 to 12 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 24V DC
Proximity Sensor Output Circuit Type
3-Wire DC PNP
Max. Detecting Distance
15 mm
Proximity Sensor Electrical Connection
Male Connector M12, 4 Pins
Proximity Sensor Operating Frequency
Less than Or Equal to 500 Hz
Operating Temp. Range
-25 to 70 Degrees C
Description/Special Features
Frontal Detection Face; Output State 1 LED Yellow
Standards
CE, CSA, E2, UL Listed
Electrical Connection
M12
Max. Current Load
10 mA
IP Rating
IP65, IP67
Series
XS1
Supply Voltage Limits
10-36 V DC
Application
mobile equipment; general purpose
Switching Capacity
<= 200 mA overload and short-circuit protection
Maximum Voltage Drop
<2 V closed)
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Maximum Delay First Up
10 ms
Differential Travel
1...15% of Sr
Storage Temp. Range
-40-85 °C
Maximum Delay Response
0.6 ms
Maximum Delay Recovery
1.4 ms
Body Type
fixed
Vibration Resistance
25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Body Finish
Nickel Plated
Electrical Installation Type
Direct Connector
DC Voltage Rating
12-24V DC
Output Circuit Number of Wires
3
Style
Cylindrical, Inductive
Output Circuit Type
PNP
Switching Frequency
500 Hz
Body Material
Brass
Sensing Distance - Maximum
15 mm
Number of Pins
4
Output Circuit Contact Form
NO
Operating Temperature - Minimum
-13 Degrees F
Operating Temperature - Maximum
158 Degrees F
Features
Overload Protection, Reverse Polarity Protection, Short Circuit Protection
Sensing Face Shielding
Shielded
AC Voltage Rating
Not Rated
Includes Indicator Lights
Indicator Lights Included

Description

Inductive Cylindrical Proximity Sensor, IP Rating IP65, IP67, Standards CE, CSA, E2, UL Listed
