  11. Cylindrical, Inductive Proximity Sensor, 8 mm Dia., Brass, 2 m, Bare Wire, 3 Wires, Shielded

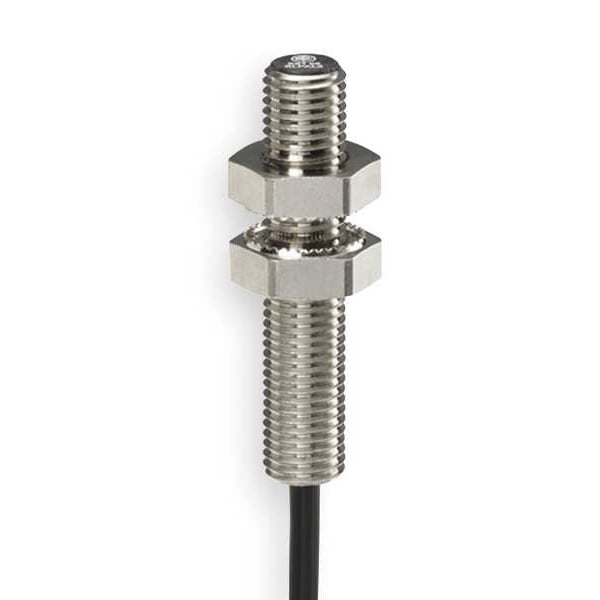

Telemecanique Sensors Cylindrical, Inductive Proximity Sensor, 8 mm Dia., Brass, 2 m, Bare Wire, 3 Wires, Shielded XS108BLPAL2 - main

Cylindrical, Inductive Proximity Sensor, 8 mm Dia., Brass, 2 m, Bare Wire, 3 Wires, Shielded

  • Mfr # XS108BLPAL2

  • Zoro # G1477174

product price: $52.39
/ea

Key Features

Measurement Range
0 to 1.2 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 24V DC
Length
41 mm
Proximity Sensor Electrical Connection
2m Cable
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XS108BLPAL2
Zoro #
G1477174
UPC #
785901673705
Country of Origin
Indonesia

Dimensions

Length
41 mm
Overall Diameter
8 mm
Overall Height
42 mm
Cable Length
2 m

Details

Item
Proximity Sensor
Measurement Range
0 to 1.2 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 24V DC
Proximity Sensor Electrical Connection
2m Cable
Proximity Sensor Operating Frequency
3,000 Hz
IP Rating
IP67
Standards
CE, CSA, RoHS, UL Listed
Max. Current Load
50mA
Operating Temp. Range
-13 Degrees to 158 Degrees F
Description/Special Features
Overload And Short-Circuit Protection, Reverse Polarity, Yellow LED Output Indication
Electrical Connection
Bare Wire
Maximum Delay Response
5 ms
Maximum Delay Recovery
0.3 ms
Series
XS1
Application
general purpose
Maximum Voltage Drop
<2 V closed)
Maximum Delay First Up
15 ms
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Switching Capacity
<= 200 mA overload and short-circuit protection
Vibration Resistance
25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Supply Voltage Limits
10-36 V DC
Body Type
fixed
Differential Travel
1...15% of Sr
Storage Temp. Range
-40-85 °C
Sensing Distance - Maximum
2 mm
Output Circuit Type
PNP
AC Voltage Rating
Not Rated
Output Circuit Contact Form
NO
NEMA Enclosure Rating
4X
Output Circuit Number of Wires
3
Load Current - Maximum
200 mA
Switching Frequency
1,000 Hz
Electrical Installation Type
Prewired Cable
Includes Indicator Lights
Indicator Lights Included
Sensing Face Shielding
Shielded
Operating Temperature - Maximum
158 Degrees F
Style
Cylindrical, Inductive
Operating Temperature - Minimum
-13 Degrees F
Body Material
Brass
Body Finish
Nickel Plated
DC Voltage Rating
12-24V DC

Description

Inductive Cylindrical Proximity Sensor, Inductive, 8 mm, Proximity Sensor Power Requirement 12 to 24V DC, Shielded, Proximity Sensor Operating Frequency 3,000 Hz, Proximity Sensor Output Circuit Type 3 Wire PNP, Max. Detecting Distance 1.5 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NO, NEMA Rating 4X, IP Rating IP67, Case Material Nickel Plated Brass, Length 41 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 50mA
