  11. Cylindrical, Inductive Proximity Sensor, 8 mm Dia., Stainless Steel, 2 m, Bare Wire, 2 Wires, Shielded

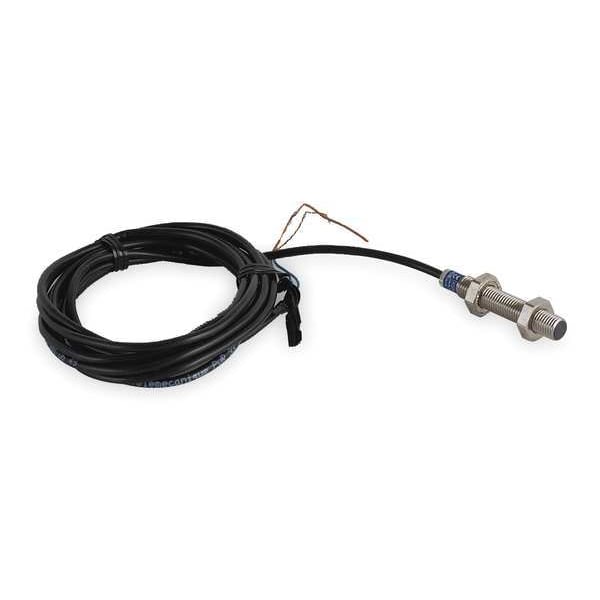

Telemecanique Sensors Cylindrical, Inductive Proximity Sensor, 8 mm Dia., Stainless Steel, 2 m, Bare Wire, 2 Wires, Shielded XS508B1DAL2 - main

Cylindrical, Inductive Proximity Sensor, 8 mm Dia., Stainless Steel, 2 m, Bare Wire, 2 Wires, Shielded

  • Mfr # XS508B1DAL2

  • Zoro # G0251605

product price: $121.99
/ea
Free Shipping & Returns

Key Features

Measurement Range
0 to 1.2 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 24V DC
Length
41 mm
Proximity Sensor Electrical Connection
2m Cable
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
XS508B1DAL2
Zoro #
G0251605
UPC #
785901999911
Country of Origin
France

Dimensions

Length
41 mm
Cable Length
2 m
Overall Diameter
8 mm
Overall Height
51 mm

Details

Item
Proximity Sensor
Measurement Range
0 to 1.2 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 24V DC
Proximity Sensor Electrical Connection
2m Cable
Proximity Sensor Operating Frequency
4,000 Hz
Standards
CCC, CE, CSA, RoHS, UL Listed
Max. Current Load
100mA
IP Rating
IP67
Operating Temp. Range
-13 Degrees to 158 Degrees F
Description/Special Features
LED Indication
Electrical Connection
Bare Wire
Maximum Voltage Drop
<4 V closed)
Series
XS5
Storage Temp. Range
-40-85 °C
Supply Voltage Limits
10-58 V DC
Maximum Delay Recovery
0.2 ms
Vibration Resistance
25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Maximum Delay First Up
10 ms
Body Type
fixed
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Maximum Delay Response
0.2 ms
Differential Travel
1...15% of Sr
Switching Capacity
1.5...100 mA DC overload and short-circuit protection
Application
general purpose
Operating Temperature - Minimum
-13 Degrees F
Body Finish
Nickel Plated
Style
Cylindrical, Inductive
Load Current - Maximum
100 mA
Sensing Face Shielding
Shielded
Electrical Installation Type
Prewired Cable
Body Stainless Steel Grade
303
Body Material
Stainless Steel
Includes Indicator Lights
Indicator Lights Included
NEMA Enclosure Rating
4X
DC Voltage Rating
12-48V DC
Output Circuit Number of Wires
2
Switching Frequency
4,000 Hz
Output Circuit Type
DC-Type
Operating Temperature - Maximum
158 Degrees F
Sensing Distance - Maximum
2 mm
Output Circuit Contact Form
NO
AC Voltage Rating
Not Rated

Description

Inductive Cylindrical Proximity Sensor, Inductive, 8 mm, Proximity Sensor Power Requirement 12 to 24V DC, Shielded, Proximity Sensor Operating Frequency 4,000 Hz, Proximity Sensor Output Circuit Type 2 Wire, Max. Detecting Distance 1.5 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NO, NEMA Rating 4X, IP Rating IP67, Case Material 303 Stainless Steel, Length 41 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 100mA
