  6. Cylindrical, Inductive Proximity Sensor, 8 mm Dia., Stainless Steel, 2 m, Bare Wire, 3 Wires, Shielded

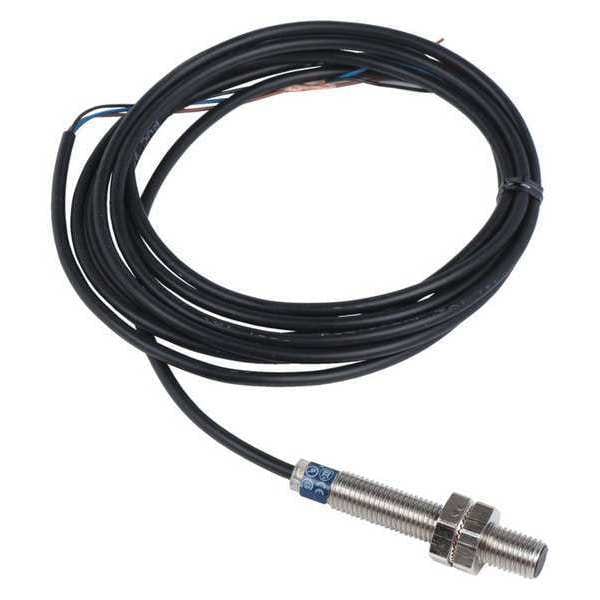

Telemecanique Sensors Cylindrical, Inductive Proximity Sensor, 8 mm Dia., Stainless Steel, 2 m, Bare Wire, 3 Wires, Shielded XS608B1PBL2 - main

Cylindrical, Inductive Proximity Sensor, 8 mm Dia., Stainless Steel, 2 m, Bare Wire, 3 Wires, Shielded

  • Mfr # XS608B1PBL2

  • Zoro # G6164697

product price:  $104.99
/ea
Free Shipping & Returns

Key Features

Measurement Range
0 to 2.5 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 48V DC
Proximity Sensor Output Circuit Type
3 Wire PNP
Length
51 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XS608B1PBL2
Zoro #
G6164697
UPC #
785901520405
Country of Origin
Indonesia

Dimensions

Length
51 mm
Proximity Sensor Diameter
8 mm
Cable Length
2 m
Overall Height
51 mm
Overall Diameter
8 mm

Details

Item
Proximity Sensor
Measurement Range
0 to 2.5 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 48V DC
Proximity Sensor Output Circuit Type
3 Wire PNP
Max. Detecting Distance
2.5 mm
Proximity Sensor Electrical Connection
2m Cable
Proximity Sensor Operating Frequency
2,500 Hz
Case Material
303 Stainless Steel
Operating Temp. Range
-13 Degrees to 158 Degrees F
Standards
CE, CSA, RoHS, UL Listed
IP Rating
IP67
Max. Current Load
200mA
Description/Special Features
Overload And Short-Circuit Protection, Reverse Polarity, Yellow LED Output Indication
Electrical Connection
Bare Wire
Maximum Delay First Up
10 ms
Series
XS6
Maximum Voltage Drop
<2 V closed)
Storage Temp. Range
-40-85 °C
Vibration Resistance
25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Body Type
fixed
Application
general purpose
Supply Voltage Limits
10-58 V DC
Maximum Delay Response
0.2 ms
Differential Travel
1...15% of Sr
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Switching Capacity
<= 200 mA DC overload and short-circuit protection
Maximum Delay Recovery
0.2 ms
Electrical Installation Type
Prewired Cable
Body Material
Stainless Steel
Body Stainless Steel Grade
303
Includes Indicator Lights
Indicator Lights Included
Output Circuit Number of Wires
3
Output Circuit Contact Form
NC
Operating Temperature - Maximum
158 Degrees F
Operating Temperature - Minimum
-13 Degrees F
Load Current - Maximum
200 mA
AC Voltage Rating
Not Rated
Style
Cylindrical, Inductive
Switching Frequency
2,500 Hz
Sensing Face Shielding
Shielded
DC Voltage Rating
12-48V DC
Features
Overload Protection, Reverse Polarity Protection, Short Circuit Protection
Sensing Method
Inductive
Sensing Distance - Maximum
3 mm
Body Finish
Nickel Plated
Sensing Distance - Minimum
0 mm
Output Circuit Type
PNP

Description

Inductive Cylindrical Proximity Sensor, Inductive, 8 mm, Proximity Sensor Power Requirement 12 to 48V DC, Shielded, Proximity Sensor Operating Frequency 2,500 Hz, Proximity Sensor Output Circuit Type 3 Wire PNP, Max. Detecting Distance 2.5 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NC, IP Rating IP67, Case Material 303 Stainless Steel, Length 51 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 200mA
