  11. Cylindrical, Inductive Proximity Sensor, 8 mm Dia., Stainless Steel, M12, 3 Wires, Shielded

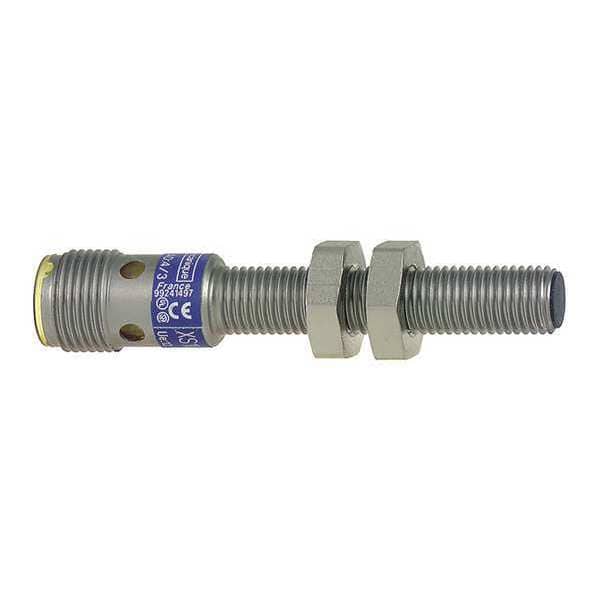

Telemecanique Sensors Cylindrical, Inductive Proximity Sensor, 8 mm Dia., Stainless Steel, M12, 3 Wires, Shielded XS508BLNBM12 - main

Cylindrical, Inductive Proximity Sensor, 8 mm Dia., Stainless Steel, M12, 3 Wires, Shielded

  • Mfr # XS508BLNBM12

  • Zoro # G6228607

product price: $88.15
/ea
Free Shipping & Returns

Key Features

Measurement Range
0 to 1.2 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 48V DC
Length
45 mm
Proximity Sensor Electrical Connection
4 Pin M12 Connector
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XS508BLNBM12
Zoro #
G6228607
UPC #
-
Country of Origin
France

Dimensions

Length
45 mm
Overall Height
62 mm
Overall Diameter
8 mm

Details

Item
Proximity Sensor
Measurement Range
0 to 1.2 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 48V DC
Proximity Sensor Electrical Connection
4 Pin M12 Connector
Proximity Sensor Operating Frequency
2,500 Hz
Max. Current Load
200mA
Operating Temp. Range
-13 Degrees to 158 Degrees F
Standards
CE, CSA, RoHS, UL Listed
IP Rating
IP65, IP67
Description/Special Features
Overload And Short-Circuit Protection, Reverse Polarity, Yellow LED Output Indication
Electrical Connection
M12
Application
general purpose
Differential Travel
1...15% of Sr
Maximum Delay Response
0.1 ms
Maximum Delay First Up
10 ms
Supply Voltage Limits
10-58 V DC
Body Type
fixed
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Storage Temp. Range
-40-85 °C
Series
XS5
Switching Capacity
<= 200 mA DC overload and short-circuit protection
Vibration Resistance
25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Maximum Voltage Drop
<2 V closed)
Maximum Delay Recovery
0.1 ms
Number of Pins
4
Operating Temperature - Minimum
-13 Degrees F
Sensing Face Shielding
Shielded
DC Voltage Rating
12-48V DC
Sensing Distance - Maximum
2 mm
Body Material
Stainless Steel
Switching Frequency
5,000 Hz
AC Voltage Rating
Not Rated
Load Current - Maximum
200 mA
Body Finish
Nickel Plated
Output Circuit Type
NPN
Operating Temperature - Maximum
158 Degrees F
Includes Indicator Lights
Indicator Lights Included
Style
Cylindrical, Inductive
Electrical Installation Type
Direct Connector
Body Stainless Steel Grade
303
Features
Overload Protection, Reverse Polarity Protection, Short Circuit Protection
Output Circuit Number of Wires
3
Output Circuit Contact Form
NC

Description

Inductive Cylindrical Proximity Sensor, Inductive, 8 mm, Proximity Sensor Power Requirement 12 to 48V DC, Shielded, Proximity Sensor Operating Frequency 2,500 Hz, Proximity Sensor Output Circuit Type 3 Wire NPN, Max. Detecting Distance 1.5 mm, Proximity Sensor Electrical Connection 4 Pin M12 Connector, Output Mode NC, IP Rating IP65, IP67, Case Material 303 Stainless Steel, Length 45 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 200mA
